FN2010-16-06 Filter, 16A, Quick Connect Schaffner

SCHAFFNERSKU:FN2010-16-06 Bestelcode:1191361

Prijs:
Actie prijs€29,86

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (977 units)

Documenten en downloads

Omschrijving

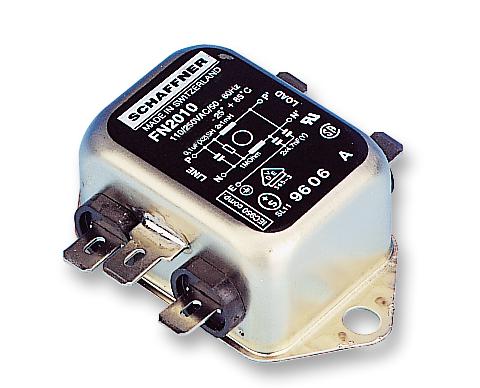

SCHAFFNER - FN2010-16-06 - Power Line Filter, Chassis, General Purpose, 250 VAC, 16 A, Single Phase, 1 Stage, Chassis Mount

  • Current Rating: 16A
  • Voltage Rating: 250VAC
  • Filter Type: General Purpose
  • Filter Terminals: Quick Connect
  • Inductance Min: 700µH
  • Capacitance: 0.1µF
  • Leakage Current Max: 740µA
  • Product Range: FN2000 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Bleed Resistor Resistance: 1Mohm
  • Capacitance X: 0.1µF
  • Capacitance Y: 4.7nF
  • External Depth: 71mm
  • External Length / Height: 29.3mm
  • External Width: 46.6mm
  • Fixing Centres: 61mm
  • Height: 29.3mm
  • Inductance: 0.65mH
  • Leakage Current: 0.4A
  • No. of Phases: Single Phase
  • No. of X Type Capacitors: 1
  • No. of Y Type Capacitors: 2
  • Standard: IEC950
  • Supply Frequency Max: 400Hz
  • Voltage Rating VAC: 250V
  • Weight: 140g
