FN2030-6-06 Filter, 1 PH, 6a, Chassis Mount Schaffner

SCHAFFNERSKU:FN2030-6-06 Bestelcode:1304845

Prijs:
Actie prijs€27,00

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (66 units)

Documenten en downloads

Omschrijving

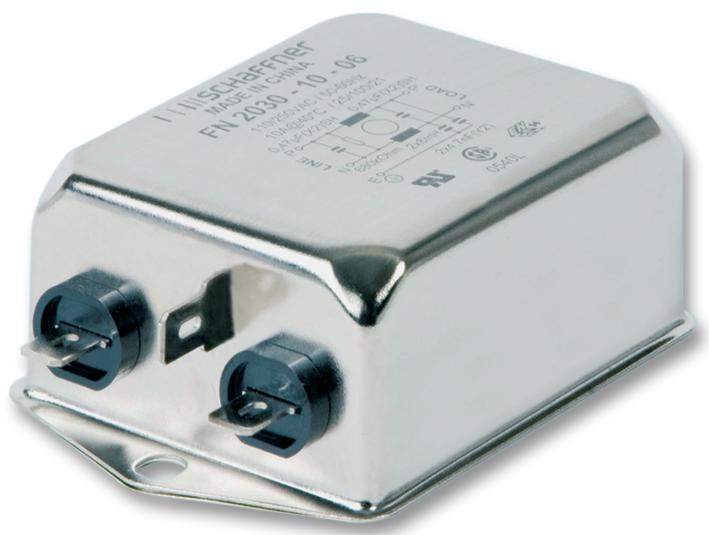

SCHAFFNER - FN2030-6-06 - Power Line Filter, Chassis, General Purpose, 250 V, 6 A, Single Phase, 1 Stage, Chassis Mount

  • Current Rating: 6A
  • Voltage Rating: 250VAC
  • Filter Type: Standard
  • Filter Terminals: Quick Connect
  • Inductance Min: 8mH
  • Capacitance: 0.47µF
  • Leakage Current Max: 0.73µA
  • Product Range: FN 2030 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Bleed Resistor Resistance: 680kohm
  • External Depth: 22.3mm
  • External Length / Height: 71mm
  • External Width: 46.6mm
  • Height: 71mm
  • Inductance: 8mH
  • Leakage Current: 0.73µA
  • No. of Phases: Single Phase
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -25°C
  • Voltage Rating VAC: 250V
