FN2030B-10-06 Filter, Medical, 10A, Chassis Mount Schaffner

SCHAFFNERSKU:FN2030B-10-06 Bestelcode:1304853

Prijs:
Actie prijs€36,30

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (100 units)

Documenten en downloads

Omschrijving

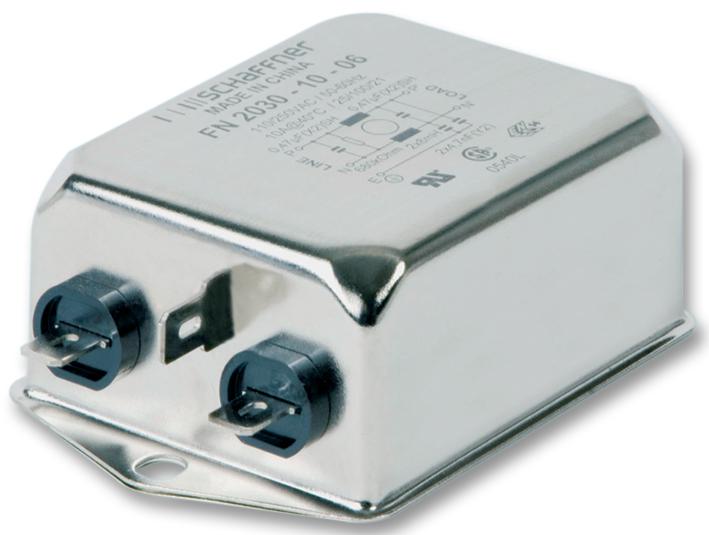

SCHAFFNER - FN2030B-10-06 - Power Line Filter, Chassis, Medical, 250 V, 10 A, Single Phase, 1 Stage, Chassis Mount

  • Current Rating: 10A
  • Voltage Rating: 250V
  • Filter Type: Medical
  • Filter Terminals: Quick Connect
  • Inductance Min: 8mH
  • Capacitance: 0.47µF
  • Leakage Current Max: 2000pA
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Bleed Resistor Resistance: 680kohm
  • External Depth: 30.3mm
  • External Length / Height: 85mm
  • External Width: 54mm
  • Height: 85mm
  • Inductance: 8mH
  • Leakage Current: 0.002µA
  • No. of Phases: Single Phase
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -25°C
  • Voltage Rating VAC: 250V
