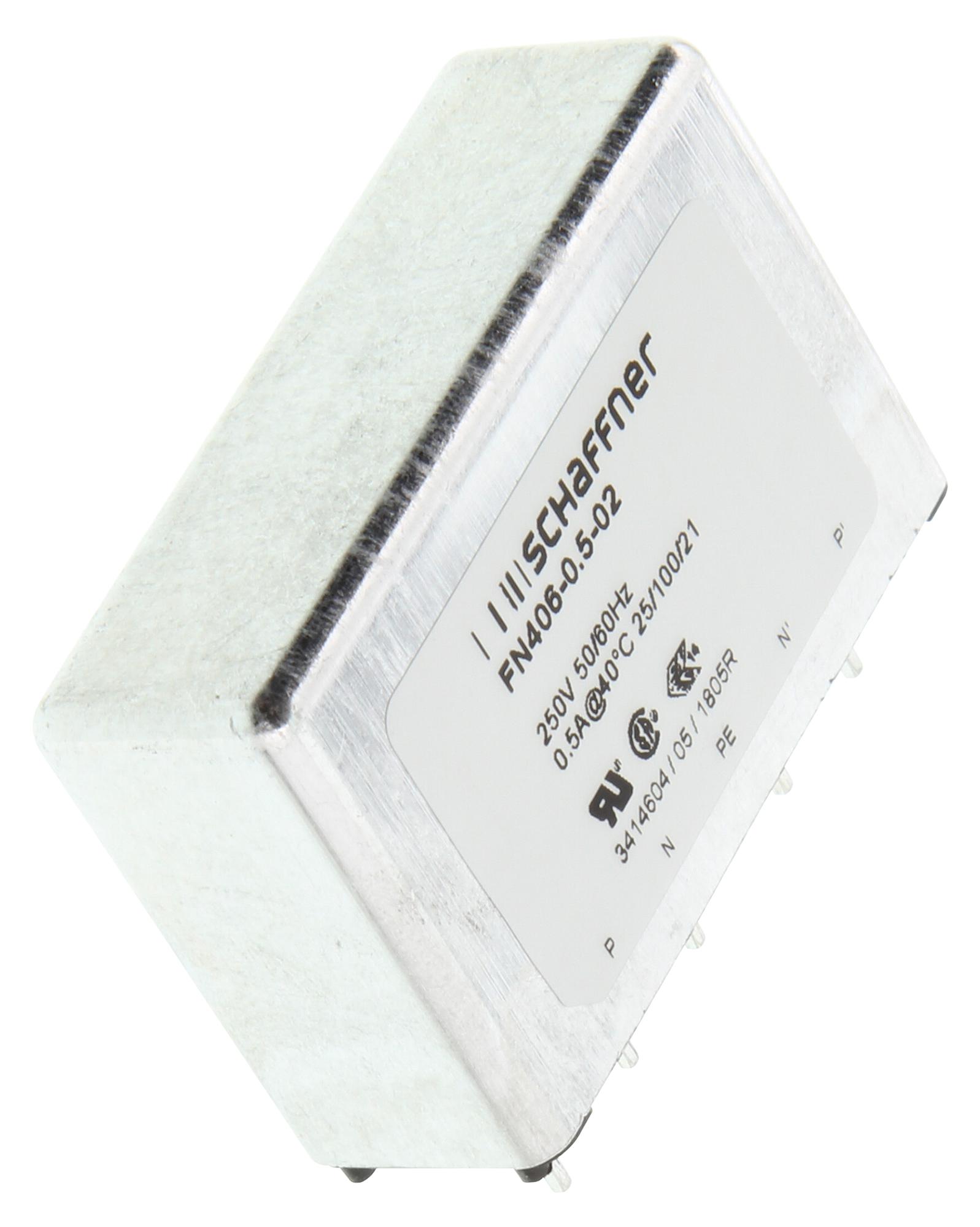

FN406-0.5-02 Filter, 0.5A, Pcb Mount Schaffner

SCHAFFNERSKU:FN406-0.5-02 Bestelcode:1191336

Prijs:
Actie prijs€16,96

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (185 units)

Documenten en downloads

Omschrijving

SCHAFFNER - FN406-0.5-02 - Power Line Filter, General Purpose, 250 VAC, 500 A, Single Phase, 1 Stage, Through Hole

  • Capacitance: 0.1µF
  • Voltage Rating: 250VAC
  • Filter Type: EMI, RFI
  • Current Rating: 500mA
  • Filter Terminals: Through Hole
  • Inductance Min: 24mH
  • Leakage Current Max: 210µA
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, SEV, UL, VDE
  • Capacitance X: 0.1µF
  • Capacitance Y: 2200pF
  • External Depth: 45mm
  • External Length / Height: 29.5mm
  • External Width: 15mm
  • Inductance: 24mH
  • Lead Cross-section Depth: 0.8mm
  • Lead Cross-section Width: 0.8mm
  • Lead Length: 7mm
  • Leakage Current: 0.21mA
  • No. of Phases: Single Phase
  • No. of X Type Capacitors: 1
  • No. of Y Type Capacitors: 2
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Standard: IEC950
  • Supply Frequency Max: 400Hz
  • Supply Frequency Min: 0Hz
  • Voltage Rating VAC: 250V
