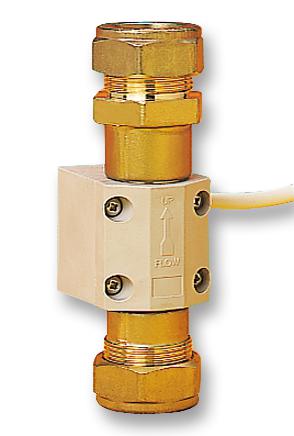

FS-05 Flow Switch, Brass, AC, 10bar Te Connectivity

TE CONNECTIVITYSKU:FS-05 Bestelcode:1006768

Prijs:
Actie prijs€149,56

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (168 units)

Documenten en downloads

Omschrijving

TE CONNECTIVITY - FS-05 - Flow Switch, FS Series, 22 mm Port Size, 10 bar, SPST-NO, 250 Vac, 3 A

  • Flow Rate: 1l/min
  • Flow Rate Max: -
  • Pressure Max: 10bar
  • Supply Voltage DC Min: -
  • Supply Voltage DC Max: -
  • Accuracy %: -
  • Port Size: 22mm
  • Product Range: FS Series
  • Connection Size: 22mm
  • Contact Configuration: SPST-NO
  • Contact Current AC Max: 3A
  • Contact Current DC: 0.5A
  • Contact Voltage AC Max: 250VAC
  • External Length / Height: 112.5mm
  • Flammability Rating: UL 94-HB
  • Lead Length: 1m
  • Material: Brass
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -30°C
  • Switch Point: 1l/min
  • Switching Current DC Max: 3A
