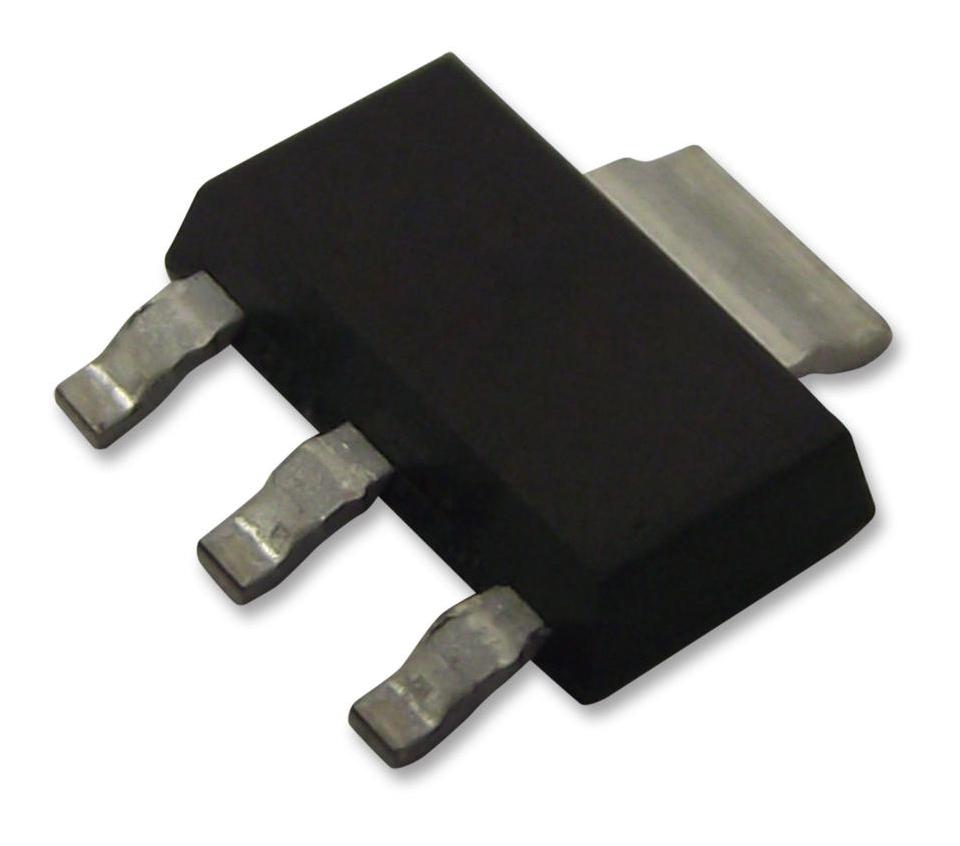

FZT1149A Transistor, PNP, Sot-223 Diodes Inc.

DIODES INC.SKU:FZT1149A Bestelcode:9526790

Prijs:
Actie prijs€1,40

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (907 units)

Documenten en downloads

Omschrijving

DIODES INC. - FZT1149A - Bipolar (BJT) Single Transistor, PNP, 25 V, 4 A, 2.5 W, SOT-223, Surface Mount

  • Transistor Polarity: PNP
  • Collector Emitter Voltage V(br)ceo: 25V
  • Transition Frequency ft: 135MHz
  • Power Dissipation Pd: 2.5W
  • DC Collector Current: 4A
  • DC Current Gain hFE: 450hFE
  • Transistor Case Style: SOT-223
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: Lead (15-Jan-2019)
  • Collector Emitter Saturation Voltage Vce(on): 350mV
  • Continuous Collector Current Ic Max: 4A
  • Current Ic @ Vce Sat: 4A
  • Current Ic Continuous a Max: 4A
  • Current Ic hFE: 500mA
  • Full Power Rating Temperature: 25°C
  • Gain Bandwidth ft Min: 135MHz
  • Gain Bandwidth ft Typ: 135MHz
  • Hfe Min: 250
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Power Dissipation Ptot Max: 2.5W
  • Pulsed Current Icm: 10A
  • SMD Marking: FZT1149A
  • Voltage Vcbo: 30V
