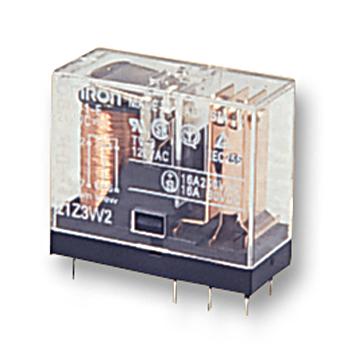

OMRON - G2R-1 24AC - Power Relay, SPDT, 24 VAC, 10 A, G2R, Through Hole, Non Latching
- Contact Configuration: SPDT
- Coil Voltage: 24VAC
- Contact Current: 10A
- Product Range: G2R Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Alloy
- Coil Resistance: 260ohm
- Approval Bodies: CSA, SEMKO, SEV, UL
- Approvals & Standards: CSA, IEC, UL, VDE
- Coil Current: 46.5mA
- Coil Operating Lower Percent Limit: 70%
- Coil Operating Upper Percent Limit: 110%
- Coil Voltage VAC Nom: 24V
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 10A
- Contact Current DC Max: 10A
- Contact Current Max: 10A
- Contact Voltage AC Max: 240V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 530mW
- External Depth: 25.5mm
- External Height: 29mm
- External Length / Height: 29mm
- External Width: 13mm
- Nom Operating Power: 0.9VA
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 15ms
- Relay Type: Power
- Release Time: 15ms
