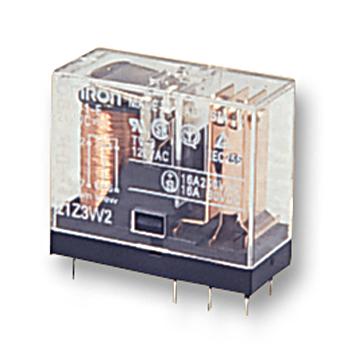

OMRON - G2R-1A DC12 - Power Relay, SPST-NO, 12 VDC, 10 A, G2R, Through Hole, Non Latching
- Contact Configuration: SPST-NO
- Coil Voltage: 12VDC
- Contact Current: 10A
- Product Range: G2R Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Alloy
- Coil Resistance: 275ohm
- Approvals & Standards: CSA, IEC, UL, VDE
- Coil Current: 43.6mA
- Coil Voltage VDC Nom: 12V
- Contact Current Max: 10A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- External Depth: 13mm
- External Height: 25.5mm
- External Length / Height: 25.5mm
- External Width: 29mm
- Nom Operating Power: 530mW
- Relay Type: Power
