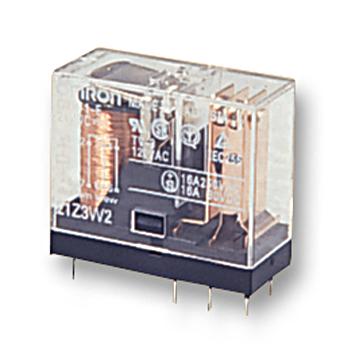

G2R-2 DC6 Relay, DPDT, 250VAC, 30Vdc, 5A Omron

OMRONSKU:G2R-2 DC6 Bestelcode:1832573

Prijs:
Actie prijs€9,75

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (562 units)

Documenten en downloads

Omschrijving

OMRON - G2R-2 DC6 - Power Relay, DPDT, 6 VDC, 5 A, G2R, Through Hole, Non Latching

  • Contact Configuration: DPDT
  • Coil Voltage: 6VDC
  • Contact Current: 5A
  • Product Range: G2R Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 68ohm
  • Approvals & Standards: CSA, IEC, UL, VDE
  • Coil Current: 88.2mA
  • Coil Voltage VDC Nom: 6V
  • Contact Current Max: 5A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • External Depth: 13mm
  • External Height: 25.5mm
  • External Length / Height: 25.5mm
  • External Width: 29mm
  • Nom Operating Power: 530mW
  • Relay Type: Power
