Omschrijving

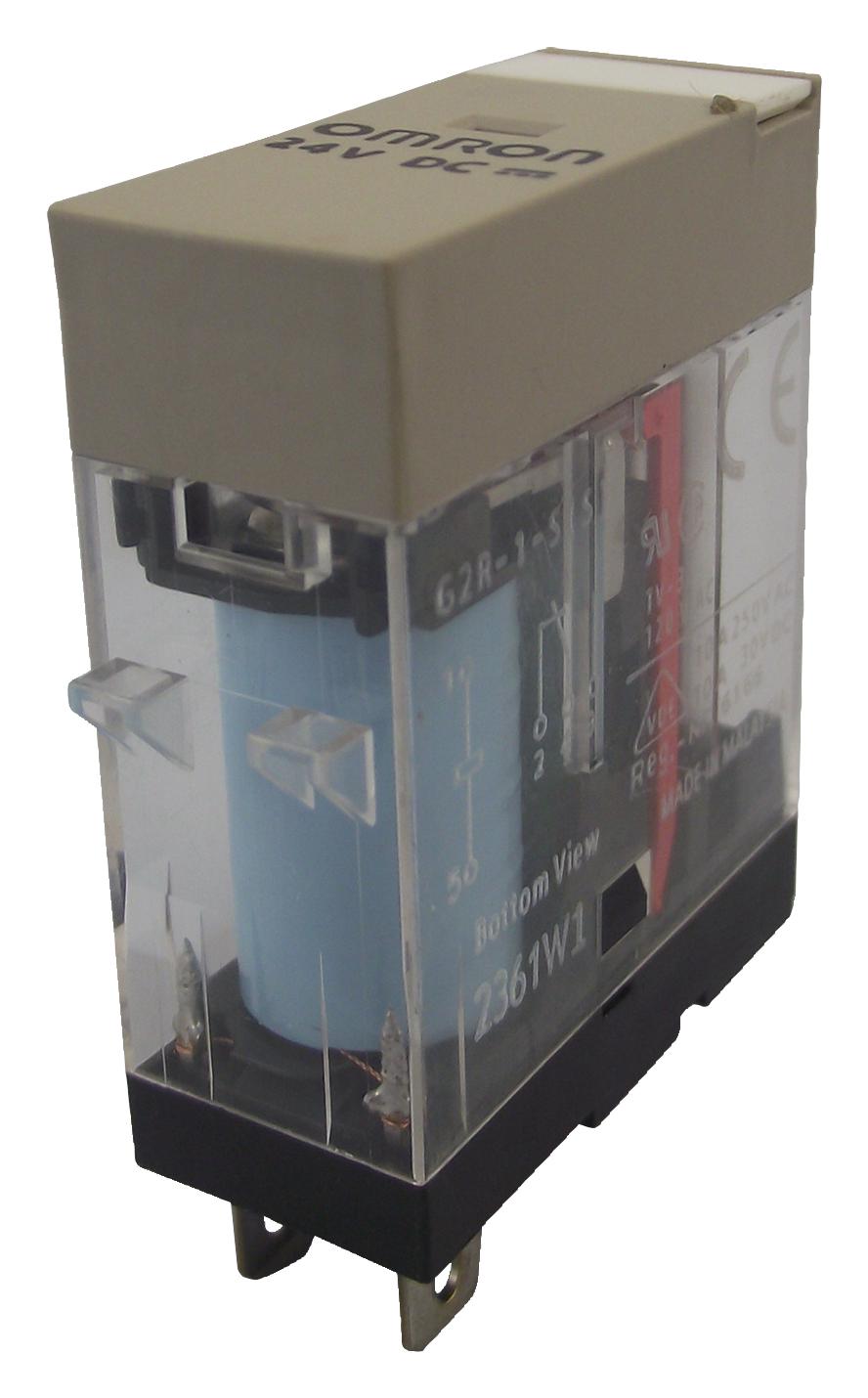

OMRON - G2R-2-SN DC24. - General Purpose Relay, G2RS Series, Power, Non Latching, DPDT, 24 VDC, 5 A
- Contact Configuration: DPDT
- Coil Voltage: 24V
- Contact Current: 5A
- Product Range: G2RS Series
- Relay Mounting: Socket
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Plug In
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Alloy
- Coil Resistance: 1.113kohm
- Approvals & Standards: CE, CSA, IEC, UL, VDE
- Coil Current: 21.6mA
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 5A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- External Depth: 13mm
- External Height: 35.5mm
- External Width: 29mm
- Nom Operating Power: 530mW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 15ms
- Relay Type: Power - General Purpose
- Release Time: 5ms
