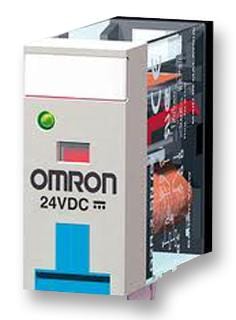

OMRON - G2R-2-SNDI DC24 - Power Relay, DPDT, 24 V, 5 A, G2RS, Socket, Non Latching
- Contact Configuration: DPDT
- Coil Voltage: 24V
- Contact Current: 5A
- Product Range: G2RS Series
- Relay Mounting: Socket
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Plug In
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Alloy
- Coil Resistance: 1.113kohm
- Approvals & Standards: CE, CSA, IEC, UL, VDE
- Coil Current: 21.8mA
- Coil Operating Lower Percent Limit: 80%
- Coil Operating Upper Percent Limit: 120%
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 5A
- Contact Current DC Max: 5A
- Contact Current Max: 5A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 530mW
- External Depth: 28mm
- External Height: 29mm
- External Length / Height: 29mm
- External Width: 13mm
- Nom Operating Power: 530mW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 15ms
- Relay Type: Power - General Purpose
- Release Time: 5ms
