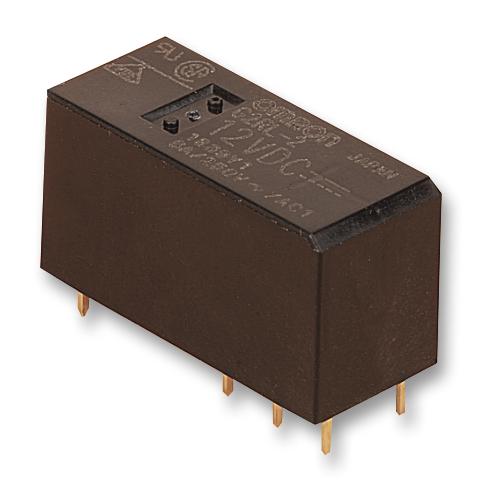

G2RL-1 DC24 Relay, SPDT, 250VAC, 24Vdc, 12A Omron

OMRONSKU:G2RL-1 DC24 Bestelcode:9950109

Prijs:
Actie prijs€5,13

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2886 units)

Documenten en downloads

Omschrijving

OMRON - G2RL-1 DC24 - Power Relay, SPDT, 24 VDC, 12 A, G2RL, Through Hole, Non Latching

  • Contact Configuration: SPDT
  • Coil Voltage: 24VDC
  • Contact Current: 12A
  • Product Range: G2RL Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 24VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 1.44kohm
  • Approval Bodies: CSA, UL, VDE
  • Approvals & Standards: CE, UL, VDE
  • Coil Current: 16.7mA
  • Coil Operating Lower Percent Limit: 70%
  • Coil Operating Upper Percent Limit: 130%
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 12A
  • Contact Current DC Max: 12A
  • Contact Current Max: 12A
  • Contact Voltage AC Max: 240V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 24V
  • DC Coil Power: 400mW
  • External Depth: 29mm
  • External Height: 15.7mm
  • External Length / Height: 15.7mm
  • External Width: 12.7mm
  • Nom Operating Power: 400mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 7ms
  • Relay Type: Power - General Purpose
  • Release Time: 5ms
