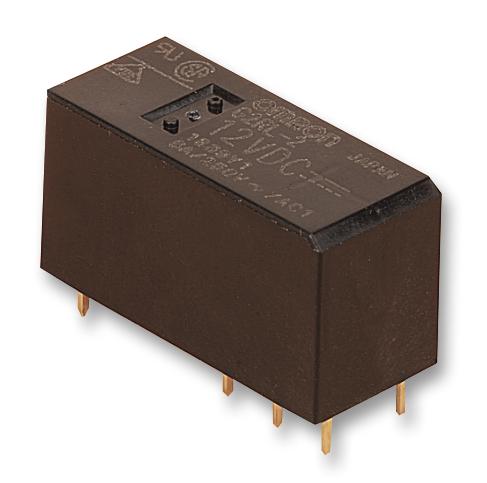

G2RL-2 DC12 Relay, DPDT, 240Vac, 30Vdc, 1.5A Omron

OMRONSKU:G2RL-2 DC12 Bestelcode:9950176

Prijs:
Actie prijs€6,47

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1902 units)

Documenten en downloads

Omschrijving

OMRON - G2RL-2 DC12 - Power Relay, DPDT, 12 VDC, 8 A, G2RL, Through Hole, Non Latching

  • Contact Configuration: DPDT
  • Coil Voltage: 12VDC
  • Contact Current: 8A
  • Product Range: G2RL Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 240VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Nickel
  • Coil Resistance: 360ohm
  • Approvals & Standards: CE, UL, VDE
  • Coil Current: 33.3mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 8A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • External Depth: 29mm
  • External Height: 15.7mm
  • External Width: 12.7mm
  • Nom Operating Power: 400mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Relay Type: Power
