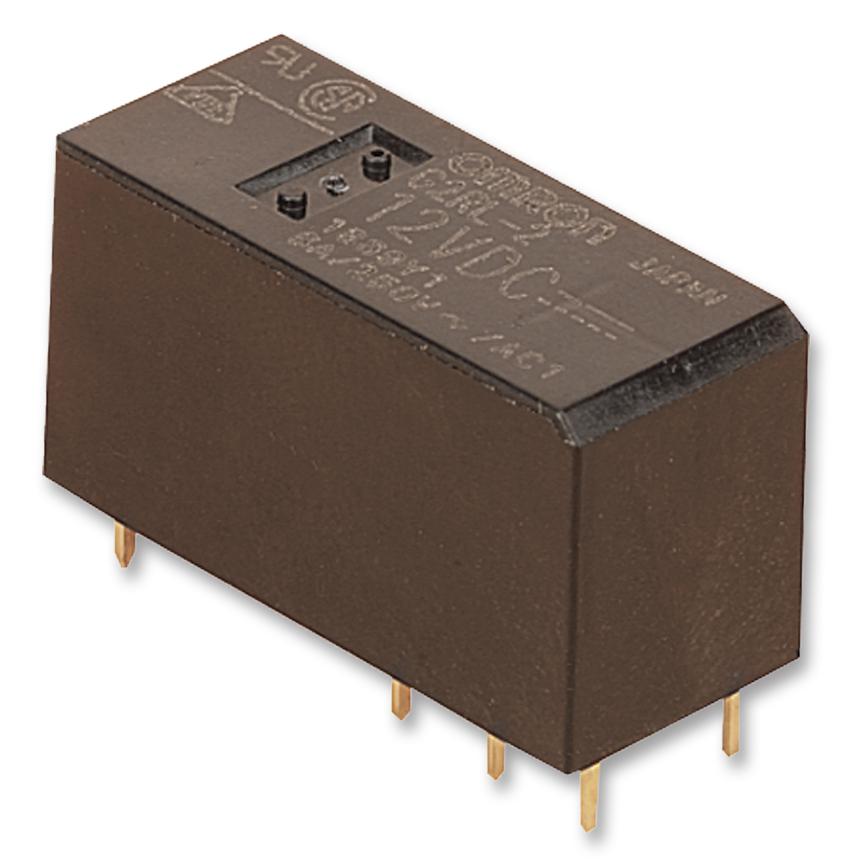

OMRON - G2RL-2A DC12 - General Purpose Relay, G2RL Series, Power, Non Latching, DPST-NO, 12 VDC, 8 A
- Contact Configuration: DPST-NO
- Coil Voltage: 12VDC
- Contact Current: 8A
- Product Range: G2RL Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 24VDC
- Contact Material: Silver Nickel
- Coil Resistance: 360ohm
- Approvals & Standards: CE, UL, VDE
- Coil Current: 33.3mA
- Coil Voltage VDC Nom: 12V
- Contact Current Max: 8A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- External Depth: 12.7mm
- External Height: 15.7mm
- External Length / Height: 15.7mm
- External Width: 29mm
- Nom Operating Power: 400mW
- Relay Type: Power
