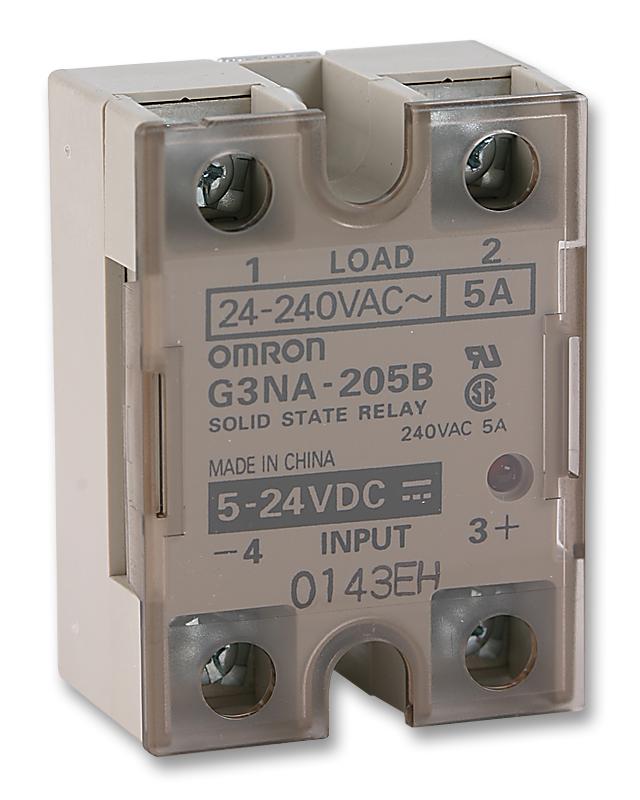

G3NA-205B-UTU DC5-24 SSR, 5A Omron

OMRONSKU:G3NA-205B-UTU DC5-24 Bestelcode:1181258

Prijs:
Actie prijs€30,32

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (21 units)

Documenten en downloads

Omschrijving

OMRON - G3NA-205B-UTU DC5-24 - Solid State Relay, SPST-NO, 5 A, 264 VAC, Panel Mount, Screw, Zero Crossing

  • Contact Configuration: SPST-NO
  • Load Current: 5A
  • Operating Voltage Max: 264VAC
  • Relay Mounting: Panel
  • Relay Terminals: Screw
  • Switching Mode: Zero Crossing
  • Operating Voltage Min: 19VAC
  • Control Voltage Min: 5VDC
  • Control Voltage Max: 24VDC
  • Product Range: G3NA Series
  • Approval Bodies: CSA, UL
  • Control Voltage DC Max: 24VDC
  • Control Voltage DC Min: 5VDC
  • Control Voltage Range: 5V DC to 24V DC
  • Control Voltage Type: DC
  • External Depth: 27mm
  • External Diameter: 4.5mm
  • External Length / Height: 58mm
  • External Width: 43mm
  • Fixing Centres: 47.5mm
  • Isolation Voltage: 2.5kV
  • Load Current Max: 5A
  • Load Current Min: 100mA
  • Load Current RMS Max: 5A
  • Operating Voltage Range: 19V AC to 264V AC
  • Output Type: Triac
  • RMS Load Current Min: 0.1A
  • RMS Load Voltage Max: 264V
  • RMS Load Voltage Min: 19V
  • Single Cycle Surge Current: 60A
  • Surge Current: 60A
