Omschrijving

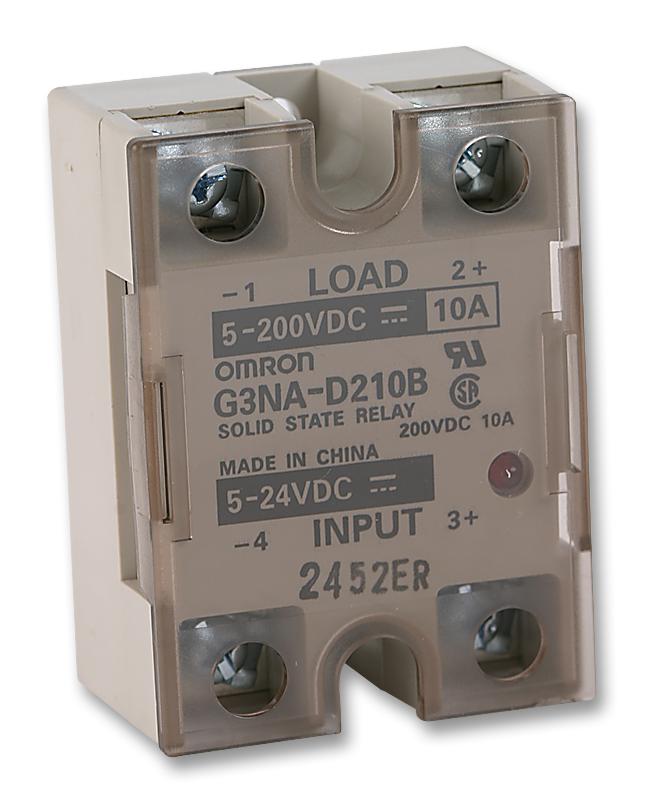

OMRON - G3NA-D210B 5-24DC - Solid State Relay, 10 A, 220 VDC, Panel Mount, Screw
- Contact Configuration: -
- Load Current: 10A
- Operating Voltage Max: 220VDC
- Relay Mounting: Panel
- Relay Terminals: Screw
- Switching Mode: -
- Operating Voltage Min: 4VDC
- Control Voltage Min: 5VDC
- Control Voltage Max: 24VDC
- Product Range: G3NA Series
- Approval Bodies: CSA, UL
- Control Voltage DC Max: 24VDC
- Control Voltage DC Min: 5VDC
- Control Voltage Range: 5V DC to 24V DC
- Control Voltage Type: DC
- External Depth: 27mm
- External Diameter: 4.5mm
- External Length / Height: 58mm
- External Width: 43mm
- Fixing Centres: 47.5mm
- Isolation Voltage: 2.5kV
- Load Current Max: 10A
- Load Current Min: 100mA
- Load Current RMS Max: 10A
- Operating Voltage Range: 4V DC to 220V DC
- Output Type: Transistor
- RMS Load Current Min: 0.1A
- RMS Load Voltage Max: 220V
- RMS Load Voltage Min: 4V
- Surge Current: 20A
