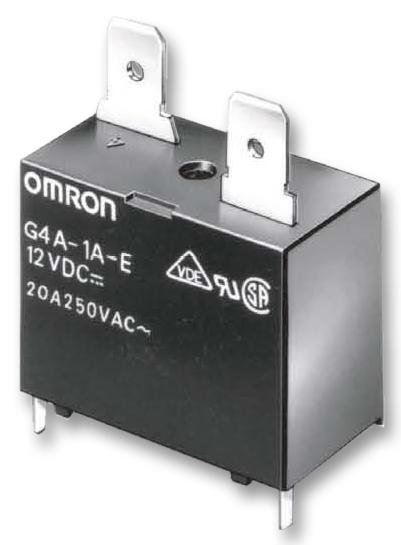

OMRON - G4A-1AE DC24 - General Purpose Relay, G4A Series, Power, Non Latching, SPST, 24 VDC, 23 A
- Contact Configuration: SPST
- Coil Voltage: 24VDC
- Contact Current: 23A
- Product Range: G4A Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 277VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Alloy
- Coil Resistance: 640ohm
- Approval Bodies: CSA, VDE
- Approval Category: UL Recognised
- Coil Current: 37.5mA
- Coil Operating Lower Percent Limit: 70%
- Coil Operating Upper Percent Limit: 160%
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 20A
- Contact Current DC Max: 20A
- Contact Current Max: 20A
- Contact Resistance: 100mohm
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- Current Rating: 37.5mA
- DC Coil Power: 900mW
- Dielectric Strength: 1000V/m
- Dielectric Voltage Coil to Contact: 4500VAC
- Dielectric Voltage Contact to Contact: 1000VAC
- External Depth: 16mm
- External Height: 23.5mm
- External Length / Height: 23.5mm
- External Width: 30.5mm
- Lead Spacing: 0.8mm
- Nom Operating Power: 900mW
