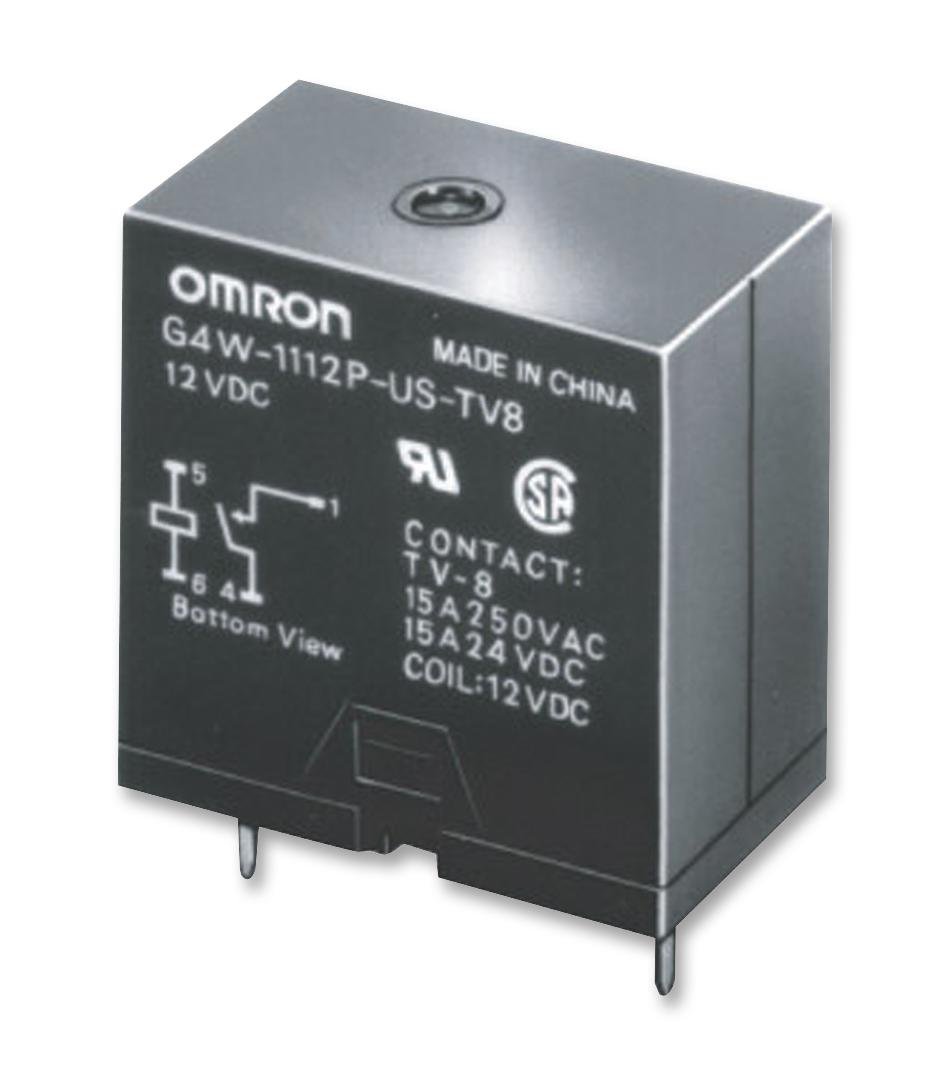

G4W1112PUSTV8 DC12 Relay, SPST-NO, 250VAC, 12VDC, 15A Omron

OMRONSKU:G4W1112PUSTV8 DC12 Bestelcode:2213776

Prijs:
Actie prijs€13,58

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 1 product leverbaar

Documenten en downloads

Omschrijving

OMRON - G4W1112PUSTV8 DC12 - General Purpose Relay, G4W Series, Power, Non Latching, SPST-NO, 12 VDC, 15 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 12VDC
  • Contact Current: 15A
  • Product Range: G4W Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 24VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 180ohm
  • Coil Current: 66.7mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 15A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 24V
  • External Depth: 30.5mm
  • External Height: 30.5mm
  • External Width: 19.5mm
  • Nom Operating Power: 800mW
  • Relay Type: Power
