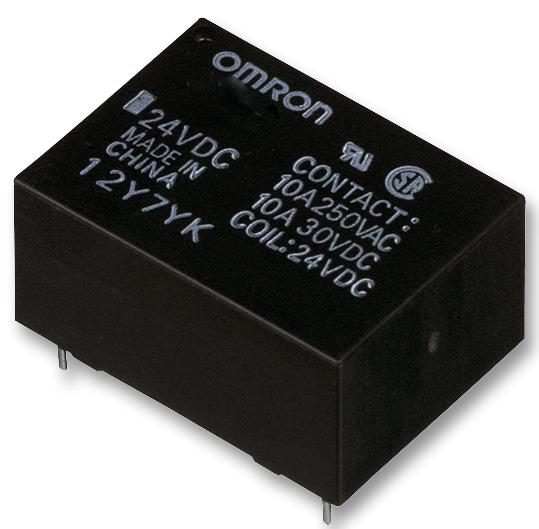

G5CA-1AE DC24 RELAY, SPST, 125VAC, 30VDC, 15A OMRON

OMRONSKU:G5CA-1AE DC24 Bestelcode:1257567

Prijs:
Actie prijs€6,76

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (60 units)

Documenten en downloads

Omschrijving

OMRON - G5CA-1AE DC24 - General Purpose Relay, G5CA Series, Power, Non Latching, SPST, 24 VDC, 15 A

  • Contact Configuration: SPST
  • Coil Voltage: 24VDC
  • Contact Current: 15A
  • Product Range: G5CA Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 125VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 2.88kohm
  • Approval Bodies: CSA, TUV
  • Approval Category: UL Recognised
  • Approvals & Standards: CSA, UL
  • Coil Current: 8.3mA
  • Coil Operating Lower Percent Limit: 10%
  • Coil Operating Upper Percent Limit: 75%
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 15A
  • Contact Current DC Max: 15A
  • Contact Current Max: 15A
  • Contact Resistance: 30mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 110V
  • Contact Voltage DC Max: 125V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 200mW
  • Dielectric Voltage Coil to Contact: 2500VAC
  • Dielectric Voltage Contact to Contact: 1000VAC
  • External Depth: 16mm
  • External Height: 11mm
  • External Length / Height: 11mm
  • External Width: 22mm
  • Insulation Resistance: 1000Mohm
  • No. of Pins: 4Pins
