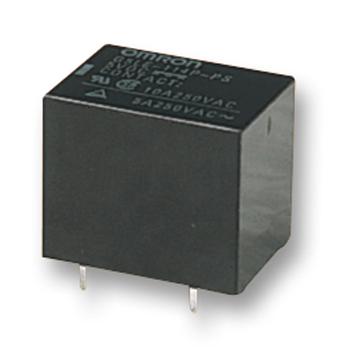

G5LE-1-36 DC5 Relay, SPDT, 250VAC, 30Vdc, 10A Omron

OMRONSKU:G5LE-1-36 DC5 Bestelcode:1798616

Prijs:
Actie prijs€2,74

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (649 units)

Documenten en downloads

Omschrijving

OMRON - G5LE-1-36 DC5 - General Purpose Relay, G5LE Series, Power, Non Latching, SPDT, 5 VDC, 10 A

  • Contact Configuration: SPDT
  • Coil Voltage: 5VDC
  • Contact Current: 10A
  • Product Range: G5LE Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 70ohm
  • Approvals & Standards: CSA, IEC, UL, VDE
  • Coil Current: 72mA
  • Coil Voltage VDC Nom: 5V
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 8A
  • Contact Current Max: 10A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 125V
  • Contact Voltage DC Nom: 125V
  • External Depth: 16.5mm
  • External Height: 19mm
  • External Length / Height: 19mm
  • External Width: 22.5mm
  • Relay Type: Power
