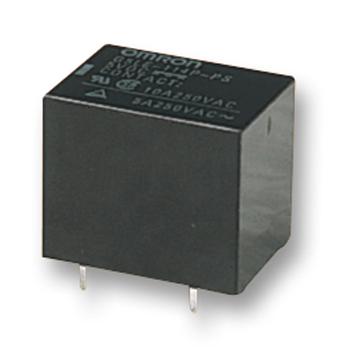

G5LE-1 DC5 Relay, SPDT, 250VAC, 30Vdc, 10A Omron

OMRONSKU:G5LE-1 DC5 Bestelcode:9949887

Prijs:
Actie prijs€3,03

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2364 units)

Documenten en downloads

Omschrijving

OMRON - G5LE-1 DC5 - General Purpose Relay, G5LE Series, Power, Non Latching, SPDT, 5 VDC, 10 A

  • Contact Configuration: SPDT
  • Coil Voltage: 5VDC
  • Contact Current: 10A
  • Product Range: G5LE Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 63ohm
  • Approval Bodies: CSA, VDE
  • Approval Category: UL Recognised
  • Approvals & Standards: CSA, IEC, UL, VDE
  • Coil Current: 79.4mA
  • Coil Operating Lower Percent Limit: 75%
  • Coil Operating Upper Percent Limit: 130%
  • Coil Voltage VDC Nom: 5V
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 8A
  • Contact Current Max: 10A
  • Contact Voltage AC Max: 120V
  • Contact Voltage AC Nom: 120V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • Current Rating: 79.4mA
  • DC Coil Power: 400mW
  • External Depth: 16.5mm
  • External Height: 19mm
  • External Length / Height: 19mm
  • External Width: 22.5mm
  • No. of Pins: 4Pins
  • Nom Operating Power: 400mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 10ms
