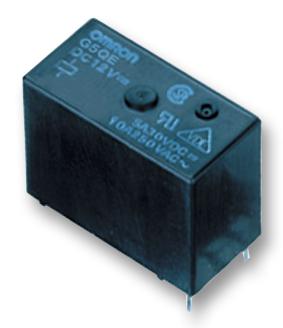

G5Q-1AEU DC24 Relay, SPST, 250VAC, 30Vdc, 10A Omron

OMRONSKU:G5Q-1AEU DC24 Bestelcode:4446483

Prijs:
Actie prijs€2,82

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (8346 units)

Documenten en downloads

Omschrijving

OMRON - G5Q-1AEU DC24 - General Purpose Relay, G5Q Series, Power, Non Latching, SPST, 24 VDC, 10 A

  • Contact Configuration: SPST
  • Coil Voltage: 24VDC
  • Contact Current: 10A
  • Product Range: G5Q Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 2.88kohm
  • Approvals & Standards: CSA, IEC, UL, VDE
  • Coil Current: 8.3mA
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 10A
  • Contact Current Max: 10A
  • Contact Resistance: 100mohm
  • Contact Voltage AC Max: 277V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • Current Rating: 8.3mA
  • DC Coil Power: 200mW
  • Dielectric Strength VDC: 4000VAC
  • External Depth: 10.3mm
  • External Height: 15.8mm
  • External Length / Height: 15.8mm
  • External Width: 20.3mm
  • Insulation Resistance: 100Mohm
  • Mechanical Life: 10,000,000 Operations
  • No. of Mechanical Operations: 10000000
  • Nom Operating Power: 200mW
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
