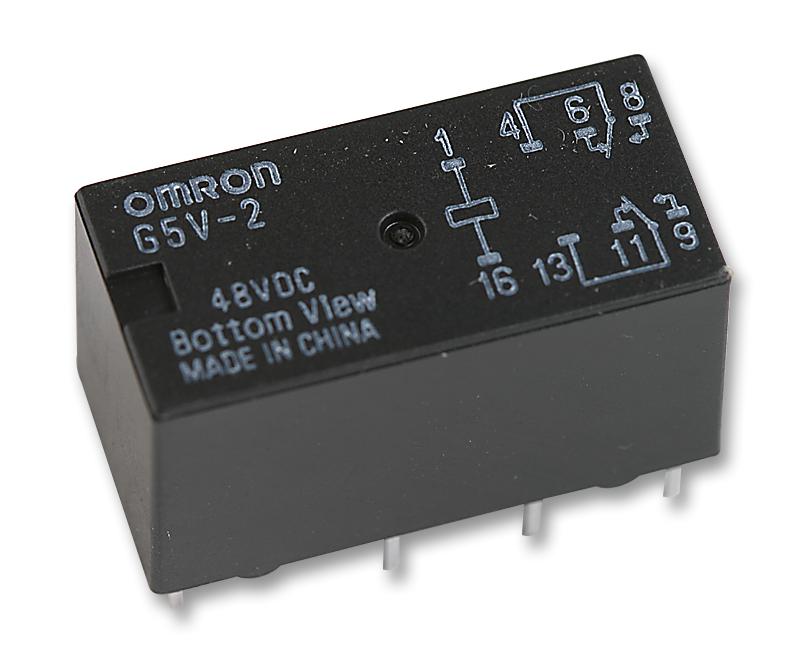

G5V-2 4 DC48 Relay, Signal, DPDT, 30Vdc, 2A Omron

OMRONSKU:G5V-2 4 DC48 Bestelcode:9949836

Prijs:
Actie prijs€5,87

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (499 units)

Documenten en downloads

Omschrijving

OMRON - G5V-2 4 DC48 - Signal Relay, 48 VDC, DPDT, 2 A, G5V-2, Through Hole, Non Latching

  • Coil Voltage: 48VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: G5V-2 Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: -
  • Contact Voltage VDC: 30V
  • Contact Material: Silver
  • Coil Resistance: 4kohm
  • Approval Bodies: CSA, UL
  • Approval Category: FCC Part 68
  • Approvals & Standards: CSA, UL
  • Coil Current: 12mA
  • Coil Operating Lower Percent Limit: 75%
  • Coil Operating Upper Percent Limit: 120%
  • Coil Power Continuous: 580mW
  • Coil Sensitivity: 150mW
  • Coil Voltage VDC Nom: 48V
  • Contact Current AC Max: 500mA
  • Contact Current DC Max: 2A
  • Contact Current Max: 2A
  • Contact Voltage AC Max: 125V
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 500mW
  • Dielectric Strength VDC: 1000V
  • External Depth: 10.1mm
  • External Height: 11.5mm
  • External Length / Height: 11.5mm
  • External Width: 20.5mm
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -25°C
  • Operating Time: 7ms
