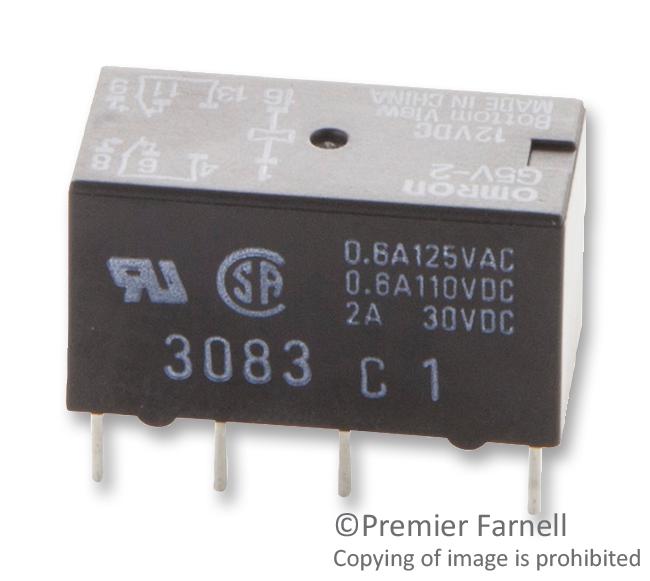

G5V-2 DC12 Relay, Signal, DPDT, 30Vdc, 2A Omron

OMRONSKU:G5V-2 DC12 Bestelcode:9949496

Prijs:
Actie prijs€3,82

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2658 units)

Documenten en downloads

Omschrijving

OMRON - G5V-2 DC12 - Signal Relay, 12 VDC, DPDT, 2 A, G5V-2, Through Hole, Non Latching

  • Coil Voltage: 12VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: G5V-2 Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: 125V
  • Contact Voltage VDC: 30V
  • Contact Material: Silver
  • Coil Resistance: 288ohm
  • Approval Bodies: CSA, UL
  • Approval Category: FCC Part 68
  • Approvals & Standards: CSA, UL
  • Coil Current: 41.7mA
  • Coil Power Continuous: 500mW
  • Coil Sensitivity: 150mW
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 500mA
  • Contact Current Max: 2A
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Nom: 30V
  • External Depth: 20.5mm
  • External Height: 11.5mm
  • External Width: 10.1mm
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -25°C
  • Operating Time: 7ms
  • Release Time: 3ms
