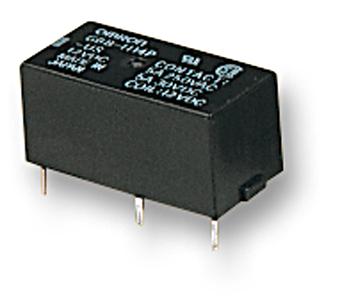

G6B-1114P-US-SV DC5 Relay, SPST-NO, 250VAC, 30Vdc, 5A Omron

OMRONSKU:G6B-1114P-US-SV DC5 Bestelcode:9949089

Prijs:
Actie prijs€11,18

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (280 units)

Documenten en downloads

Omschrijving

OMRON - G6B-1114P-US-SV DC5 - General Purpose Relay, G6B Series, Power, Non Latching, SPST-NO, 5 VDC, 5 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 5VDC
  • Contact Current: 5A
  • Product Range: G6B Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 125ohm
  • Approval Bodies: CSA, UL
  • Approvals & Standards: CSA, UL
  • Coil Current: 40mA
  • Coil Operating Lower Percent Limit: 80%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Voltage VDC Nom: 5V
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Current Max: 5A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 200mW
  • External Depth: 10mm
  • External Height: 20mm
  • External Length / Height: 20mm
  • External Width: 10mm
  • Nom Operating Power: 200mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Operating Time: 10ms
  • Relay Type: Power
  • Release Time: 10ms
