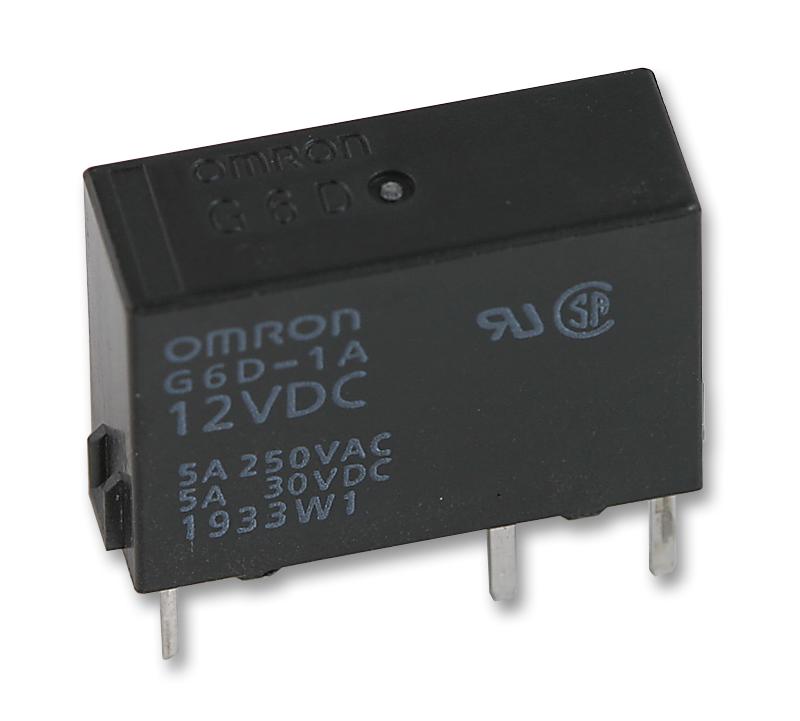

G6D-1A-ASI DC12 Relay, SPST-NO, 250VAC, 30Vdc, 5A Omron

OMRONSKU:G6D-1A-ASI DC12 Bestelcode:9812679

Prijs:
Actie prijs€10,66

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (6601 units)

Documenten en downloads

Omschrijving

OMRON - G6D-1A-ASI DC12 - General Purpose Relay, G6D-ASI Series, Power, Non Latching, SPST-NO, 12 VDC, 5 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 12VDC
  • Contact Current: 5A
  • Product Range: G6D Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 720ohm
  • Approval Bodies: CSA, TUV
  • Approval Category: UL Recognised
  • Coil Current: 16.7mA
  • Coil Operating Lower Percent Limit: 70%
  • Coil Operating Upper Percent Limit: 130%
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Current Max: 5A
  • Contact Resistance: 100mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 200mW
  • Dielectric Voltage Coil to Contact: 3000VAC
  • Dielectric Voltage Contact to Contact: 750VAC
  • External Depth: 6.5mm
  • External Height: 12.5mm
  • External Length / Height: 12.5mm
  • External Width: 17.5mm
  • Insulation Resistance: 1000Mohm
  • No. of Pins: 4Pins
  • Nom Operating Power: 200mW
