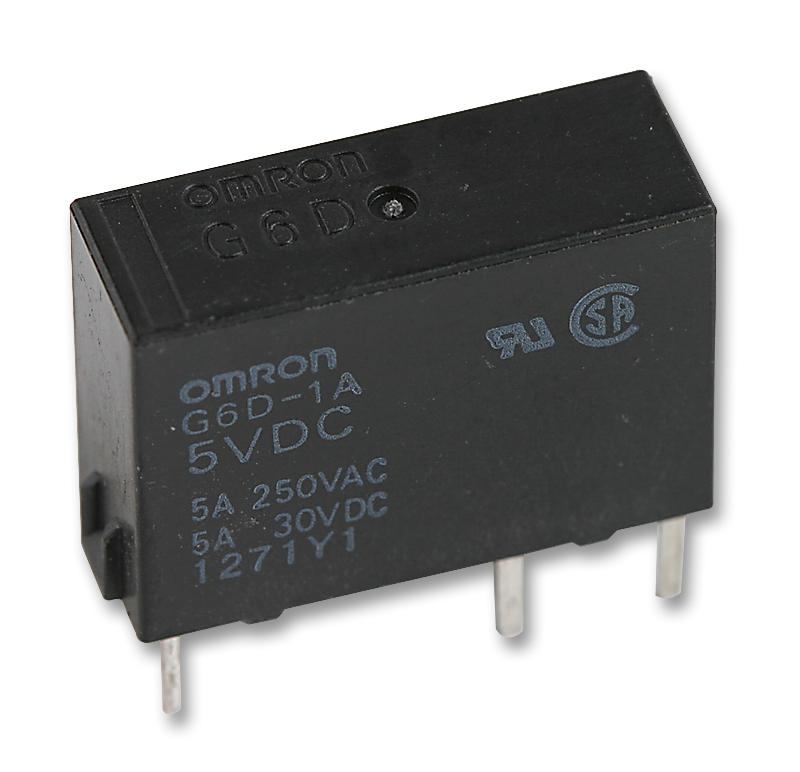

G6D-1A-ASI DC5 Relay, SPST-NO, 250VAC, 30Vdc, 5A Omron

OMRONSKU:G6D-1A-ASI DC5 Bestelcode:9812660

Prijs:
Actie prijs€11,72

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (14348 units)

Documenten en downloads

Omschrijving

OMRON - G6D-1A-ASI DC5 - General Purpose Relay, G6D-ASI Series, Power, Non Latching, SPST-NO, 5 VDC, 5 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 5VDC
  • Contact Current: 5A
  • Product Range: G6D Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 125ohm
  • Approval Bodies: CSA, TUV
  • Coil Current: 40mA
  • Coil Voltage VDC Nom: 5V
  • Contact Current Max: 5A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • External Depth: 6.5mm
  • External Height: 12.5mm
  • External Width: 17.5mm
  • Nom Operating Power: 200mW
  • Relay Type: Power - General Purpose
