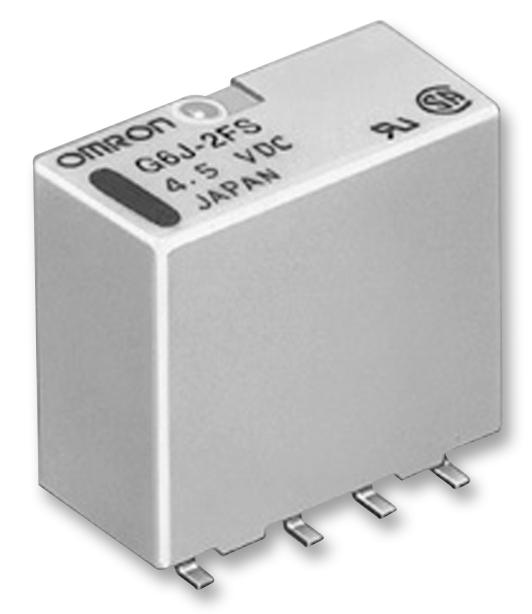

OMRON - G6J-2FL-Y-DC5 - Signal Relay, 5 VDC, DPDT, 1 A, G6J-Y, Surface Mount, Non Latching
- Coil Voltage: 5VDC
- Contact Configuration: DPDT
- Contact Current: 1A
- Product Range: G6J-Y Series
- Relay Mounting: SMD
- Coil Type: Non Latching
- Relay Terminals: Solder
- Contact Voltage VAC: -
- Contact Voltage VDC: 30V
- Contact Material: Silver Gold
- Coil Resistance: 173.1ohm
- Approval Bodies: CSA
- Approval Category: UL Recognised
- Approvals & Standards: CSA, UL
- Coil Current: 28.9mA
- Coil Power Continuous: 140mW
- Coil Voltage VDC Nom: 5V
- Contact Current AC Max: 300mA
- Contact Current DC Max: 1A
- Contact Current Max: 1A
- Contact Resistance: 100mohm
- Contact Voltage AC Max: 125V
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 140mW
- Dielectric Voltage Coil to Contact: 1500VAC
- Dielectric Voltage Contact to Contact: 1000VAC
- External Depth: 10.6mm
- External Height: 10mm
- External Length / Height: 10mm
- External Width: 5.7mm
- Insulation Resistance: 1000Mohm
- Insulation Resistance Voltage: 500VDC
- No. of Electrical Operations: 100000
