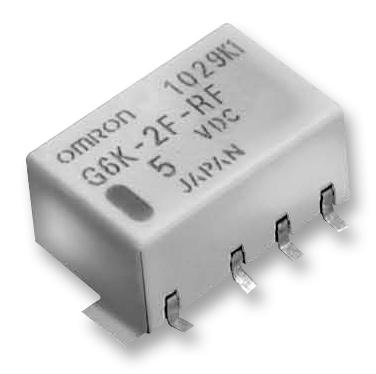

G6K-2F-RF-DC5 Relay, DPDT, 30Vdc, 1A Omron

OMRONSKU:G6K-2F-RF-DC5 Bestelcode:1448182

Prijs:
Actie prijs€30,21

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (512 units)

Documenten en downloads

Omschrijving

OMRON - G6K-2F-RF-DC5 - General Purpose Relay, G6K-RF Series, High Frequency, Non Latching, DPDT, 5 VDC, 1 A

  • Contact Configuration: DPDT
  • Coil Voltage: 5VDC
  • Contact Current: 1A
  • Product Range: G6K-RF Series
  • Relay Mounting: SMD
  • Coil Type: Non Latching
  • Contact Voltage VAC: -
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver
  • Coil Resistance: 237ohm
  • Coil Current: 21.1mA
  • Coil Frequency Max: 1GHz
  • Coil Voltage VDC Nom: 5V
  • Contact Current AC Max: 300mA
  • Contact Current DC Max: 1A
  • Contact Current Max: 1A
  • Contact Resistance: 100mohm
  • Contact Voltage AC Max: 125V
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 100mW
  • Dielectric Voltage Coil to Contact: 750VAC
  • Dielectric Voltage Contact to Contact: 750VAC
  • External Depth: 10mm
  • External Height: 5.4mm
  • External Length / Height: 5.4mm
  • External Width: 6.5mm
  • Impedance: 50ohm
  • Insertion Loss Max: 0.2dB
  • Insulation Resistance: 1000Mohm
  • Insulation Resistance Voltage: 500VDC
  • No. of Electrical Operations: 100000
  • No. of Mechanical Operations: 50000000
  • Nom Operating Power: 100mW
