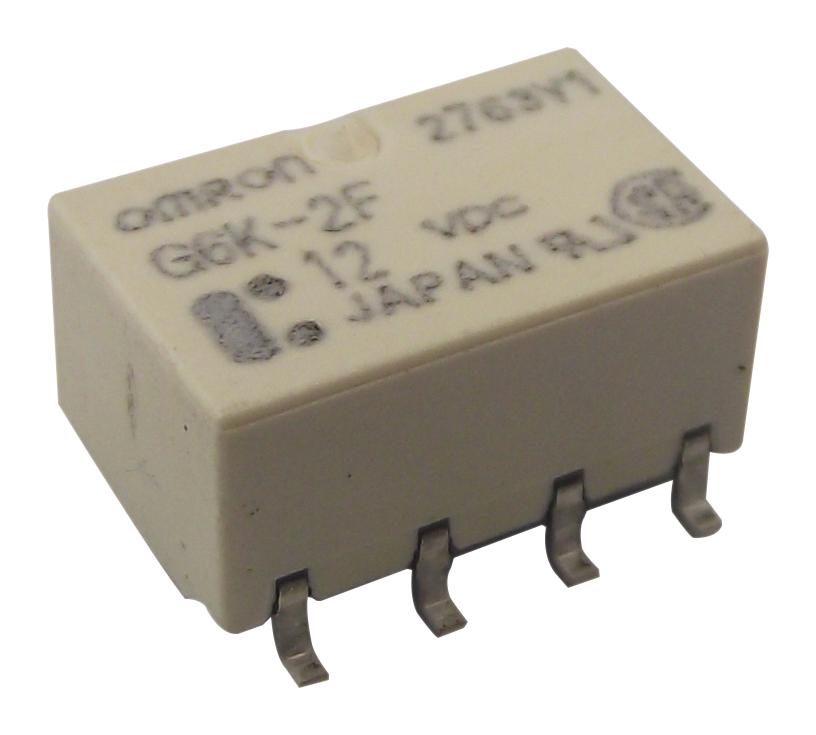

G6K-2FY DC12 Relay, Signal, DPDT, 30Vdc, 1A Omron

OMRONSKU:G6K-2FY DC12 Bestelcode:4446240

Prijs:
Actie prijs€7,37

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (12357 units)

Documenten en downloads

Omschrijving

OMRON - G6K-2FY DC12 - Signal Relay, 12 VDC, DPDT, 1 A, G6K, Surface Mount, Non Latching

  • Coil Voltage: 12VDC
  • Contact Configuration: DPDT
  • Contact Current: 1A
  • Product Range: G6K Series
  • Relay Mounting: SMD
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: -
  • Contact Voltage VDC: 30V
  • Contact Material: Silver Gold
  • Coil Resistance: 1.315kohm
  • Approvals & Standards: CSA, UL
  • Coil Current: 9.1mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 1A
  • Contact Current DC Max: 1A
  • Contact Current Max: 1A
  • Contact Resistance: 100mohm
  • Contact Voltage AC Max: 125V
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Max: 60V
  • Contact Voltage DC Nom: 30V
  • Current Rating: 9.1mA
  • DC Coil Power: 100mW
  • Dielectric Strength VDC: 1500VAC
  • External Depth: 6.5mm
  • External Height: 5.2mm
  • External Length / Height: 5.2mm
  • External Width: 10mm
  • Insulation Resistance: 1000Mohm
  • Mechanical Life: 50,000,000 Operations
  • No. of Mechanical Operations: 50000000
  • Nom Operating Power: 100mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Operating Time: 1.4ms
  • Release Time: 1.3ms

Verwachte verzendkosten

Bekijk ook eens

G6K-2PY  DC12 RELAY, SIGNAL, DPDT, 30VDC, 1A OMRON
OMRON G6K-2PY DC12 Relay, Signal, DPDT, 30Vdc, 1A Omron
Actie prijs€7,30
Op voorraad, 213 producten
OMRON G6K-2FY DC5 Relay, Signal, DPDT, 5VDC, 1A Omron
Actie prijs€7,16
Op voorraad, 38410 producten
G6K-2FY  DC24 RELAY, SIGNAL, DPDT, 30VDC, 1A OMRON
OMRON G6K-2FY DC24 Relay, Signal, DPDT, 30Vdc, 1A Omron
Actie prijs€7,37
Op voorraad, 5651 producten
G5Q-14EU  DC12 RELAY, SPDT, 250VAC, 30VDC, 10A OMRON
OMRON G5Q-14EU DC12 Relay, SPDT, 250VAC, 30Vdc, 10A Omron
Actie prijs€3,12
Op voorraad, 1693 producten
G6E-134P-US  DC5 RELAY, SIGNAL, SPDT, 30VDC, 2A OMRON
OMRON G6E-134P-US DC5 Relay, Signal, SPDT, 30Vdc, 2A Omron
Actie prijs€5,72
Op voorraad, 420 producten
G5Q-1AEU  DC24 RELAY, SPST, 250VAC, 30VDC, 10A OMRON
OMRON G5Q-1AEU DC24 Relay, SPST, 250VAC, 30Vdc, 10A Omron
Actie prijs€2,73
Op voorraad, 7073 producten
G6RN-1A  DC5 RELAY, SPST-NO, 250VAC, 8A OMRON
OMRON G6RN-1A DC5 Relay, SPST-NO, 250VAC, 8A Omron
Actie prijs€7,37
Op voorraad, 1271 producten
G6C-1114P-US DC12 RELAY, SPST-NO, 250VAC, 30VDC, 10A OMRON
OMRON G6C-1114P-US DC12 Relay, SPST-NO, 250VAC, 30Vdc, 10A Omron
Actie prijs€12,49
Op voorraad, 1261 producten
G5V-2 4 DC48 RELAY, SIGNAL, DPDT, 30VDC, 2A OMRON
OMRON G5V-2 4 DC48 Relay, Signal, DPDT, 30Vdc, 2A Omron
Actie prijs€6,13
Op voorraad, 454 producten

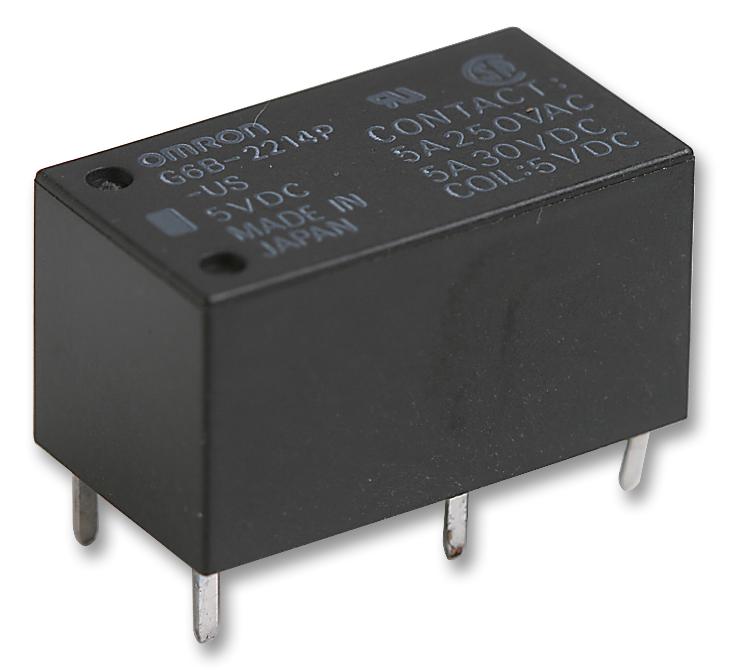

OMRON Power - General Purpose G6B-2214P-US  DC5 RELAY, DPST-NO, 250VAC, 30VDC, 5A OMRON 9949224 G6B-2214P-US  DC5
