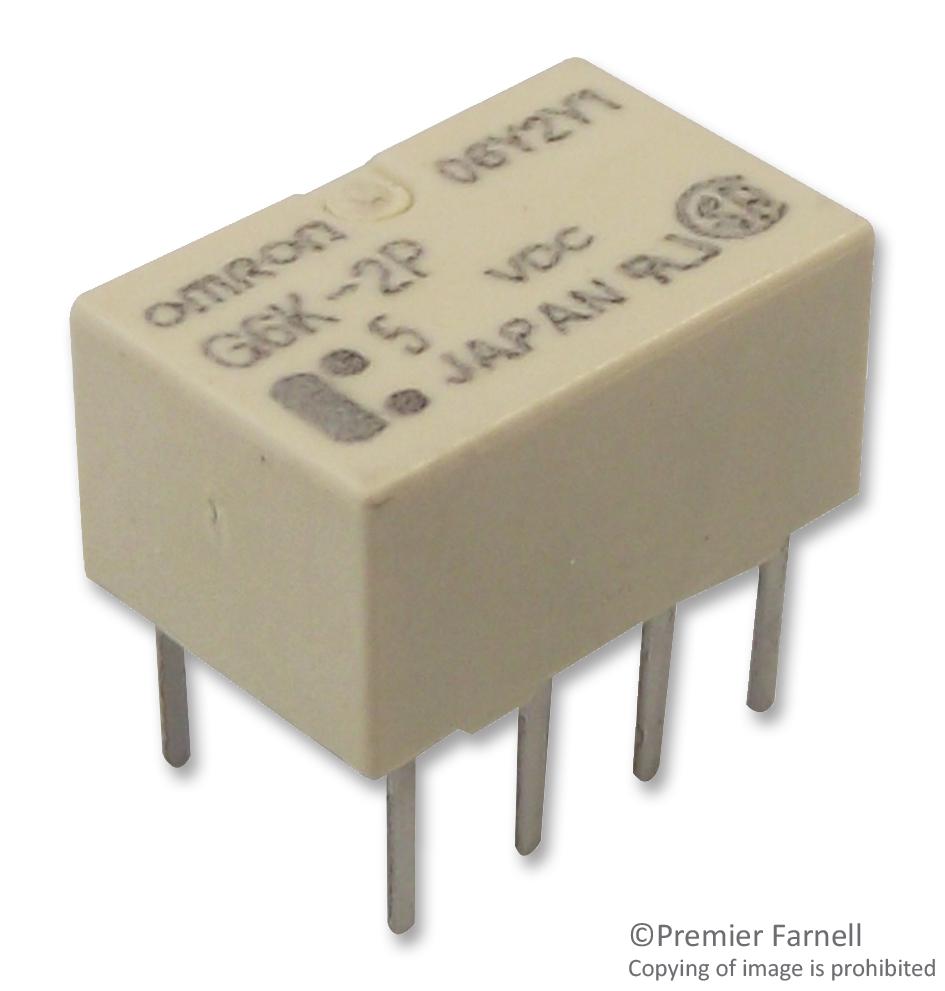

G6K-2P DC12 Relay, Signal, DPDT, 30Vdc, 1A Omron

OMRONSKU:G6K-2P DC12 Bestelcode:4446094

Prijs:
Actie prijs€7,03

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2586 units)

Documenten en downloads

Omschrijving

OMRON - G6K-2P DC12 - Signal Relay, 12 VDC, DPDT, 1 A, G6K, Through Hole, Non Latching

  • Coil Voltage: 12VDC
  • Contact Configuration: DPDT
  • Contact Current: 1A
  • Product Range: G6K Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: -
  • Contact Voltage VDC: 30V
  • Contact Material: Silver Gold
  • Coil Resistance: 1.315kohm
  • Approvals & Standards: CSA, UL
  • Coil Current: 9.1mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 1A
  • Contact Current DC Max: 1A
  • Contact Current Max: 1A
  • Contact Resistance: 100mohm
  • Contact Voltage AC Max: 125V
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Max: 60V
  • Contact Voltage DC Nom: 30V
  • Current Rating: 9.1mA
  • DC Coil Power: 100mW
  • Dielectric Strength VDC: 1500VAC
  • External Depth: 6.5mm
  • External Height: 5.2mm
  • External Length / Height: 5.2mm
  • External Width: 10mm
  • Insulation Resistance: 1000Mohm
  • Mechanical Life: 50,000,000 Operations
  • No. of Mechanical Operations: 50000000
  • Nom Operating Power: 100mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Operating Time: 1.4ms
