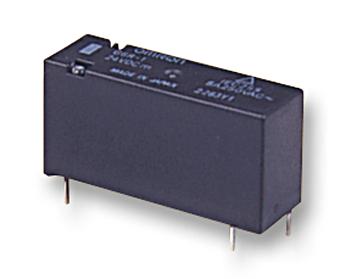

G6RN-1 DC5 Relay, SPDT, 250VAC, 8A Omron

OMRONSKU:G6RN-1 DC5 Bestelcode:9949933

Prijs:
Actie prijs€7,38

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (3195 units)

Documenten en downloads

Omschrijving

OMRON - G6RN-1 DC5 - General Purpose Relay, G6RN Series, Power, Non Latching, SPDT, 5 VDC, 8 A

  • Contact Configuration: SPDT
  • Coil Voltage: 5VDC
  • Contact Current: 8A
  • Product Range: G6RN Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Alloy
  • Coil Resistance: 114ohm
  • Coil Current: 43.9mA
  • Coil Voltage VDC Nom: 5V
  • Contact Current Max: 8A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • External Depth: 10mm
  • External Height: 15mm
  • External Width: 28.5mm
  • Nom Operating Power: 220mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Relay Type: Power
