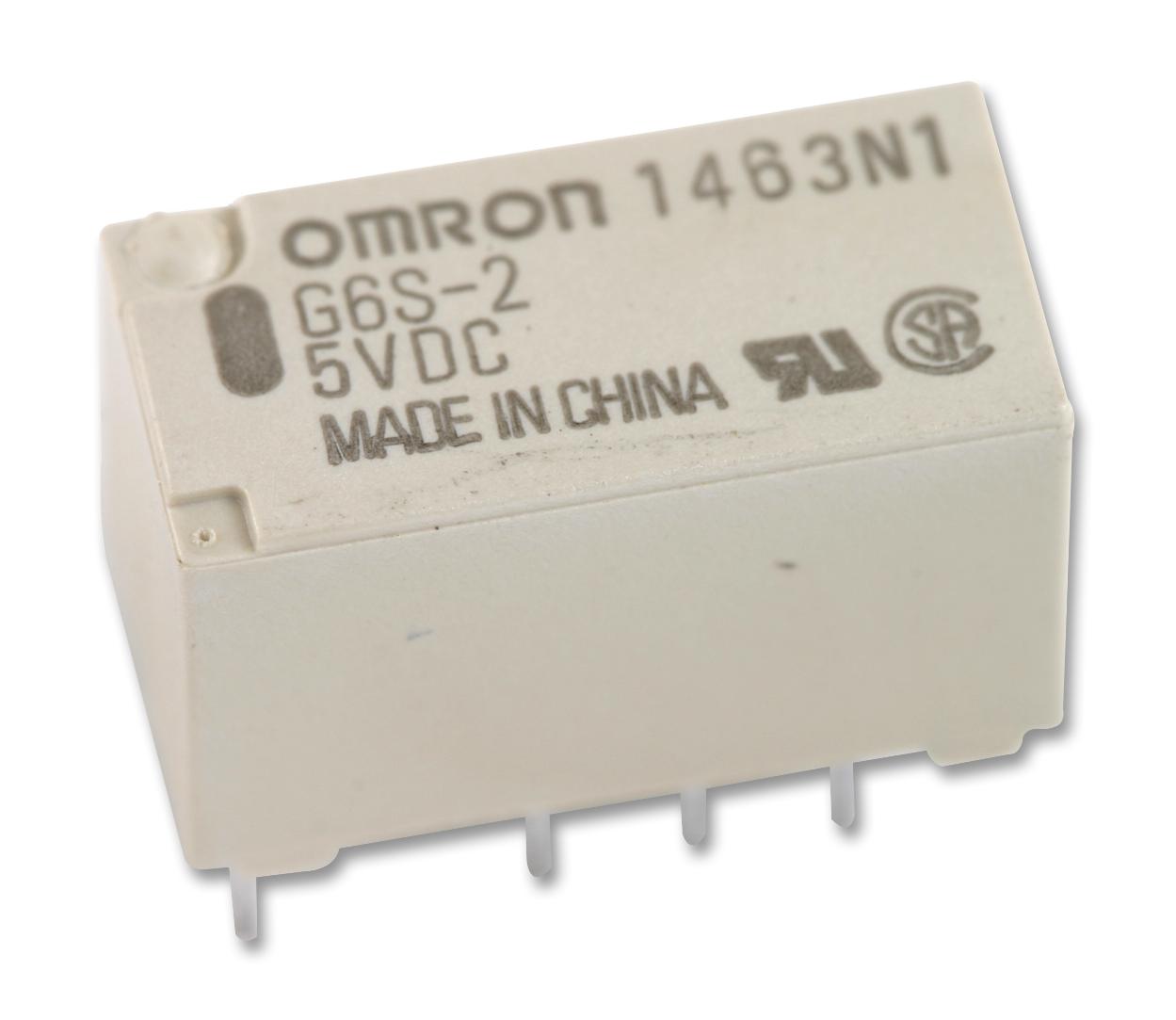

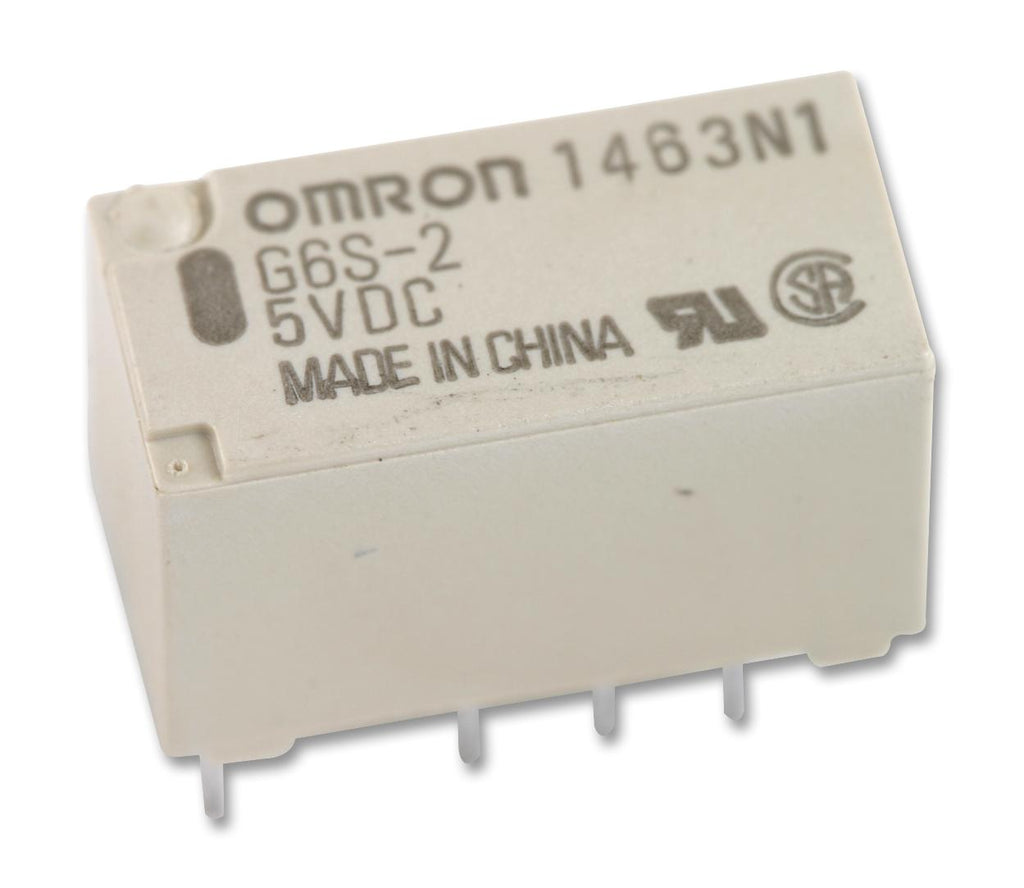

OMRON - G6S-2F-Y 4 DC5 - Signal Relay, 4.5 VDC, DPDT, 2 A, G6S, Surface Mount, Non Latching
- Coil Voltage: 4.5VDC
- Contact Configuration: DPDT
- Contact Current: 2A
- Product Range: G6S Series
- Relay Mounting: SMD
- Coil Type: Non Latching
- Relay Terminals: Solder
- Contact Voltage VAC: -
- Contact Voltage VDC: 30V
- Contact Material: Silver Gold
- Coil Resistance: 145ohm
- Approvals & Standards: CSA, UL
- Coil Current: 31mA
- Coil Power Continuous: 140mW
- Coil Voltage VDC Nom: 4.5V
- Contact Current Max: 2A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 220V
- External Depth: 14.8mm
- External Height: 8.55mm
- External Width: 7.3mm
