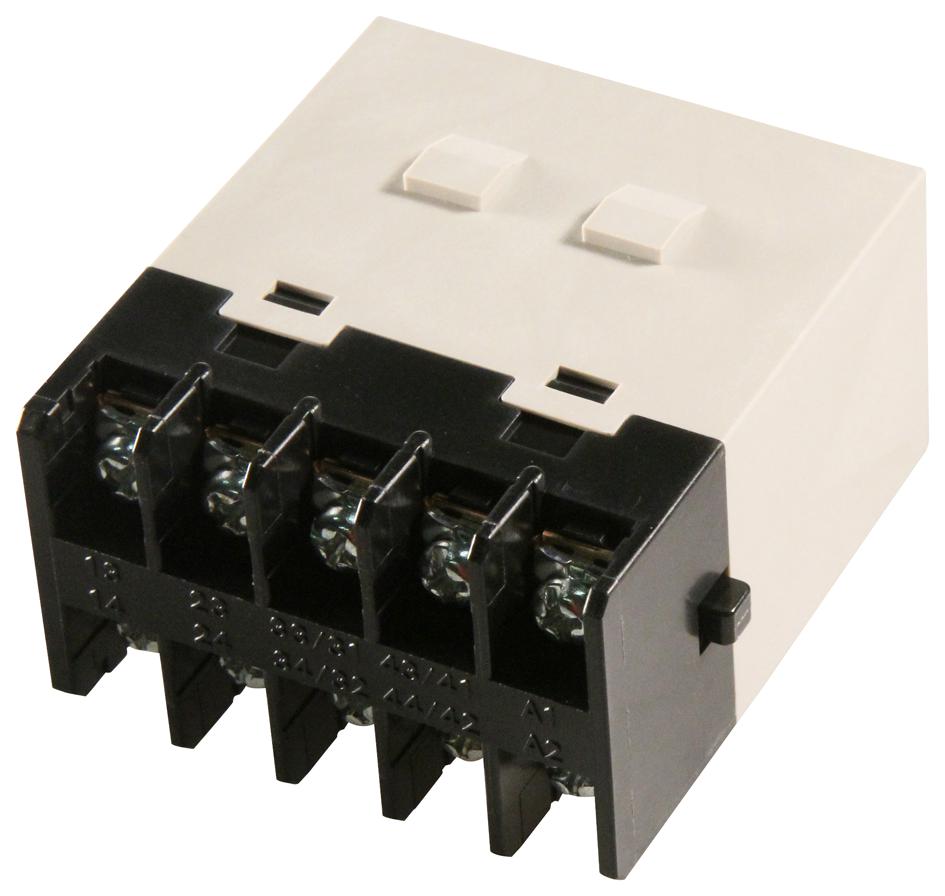

G7J4AB DC24 Relay, 4PST-NO, 277VAC, 30Vdc, 25A Omron

OMRONSKU:G7J4AB DC24 Bestelcode:1181266

Prijs:
Actie prijs€51,04

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (86 units)

Documenten en downloads

Omschrijving

OMRON - G7J4AB DC24 - General Purpose Relay, G7J Series, Power, Non Latching, 4PST-NO, 24 VDC, 25 A

  • Contact Configuration: 4PST-NO
  • Coil Voltage: 24VDC
  • Contact Current: 25A
  • Product Range: G7J Series
  • Relay Mounting: Panel
  • Coil Type: Non Latching
  • Contact Voltage VAC: 277VAC
  • Relay Terminals: Screw
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 288ohm
  • Approval Bodies: CSA, UL
  • Approvals & Standards: CSA, UL, VDE
  • Coil Current: 83mA
  • Coil Operating Lower Percent Limit: 75%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 25A
  • Contact Current Max: 25A
  • Contact Resistance: 50mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 220V
  • Contact Voltage DC Max: 125V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 2W
  • External Depth: 34.5mm
  • External Height: 64mm
  • External Length / Height: 64mm
  • External Width: 51.5mm
  • Insulation Resistance: 1000Mohm
  • No. of Electrical Operations: 100000
  • No. of Mechanical Operations: 1000000
  • Nom Operating Power: 2W
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -25°C
