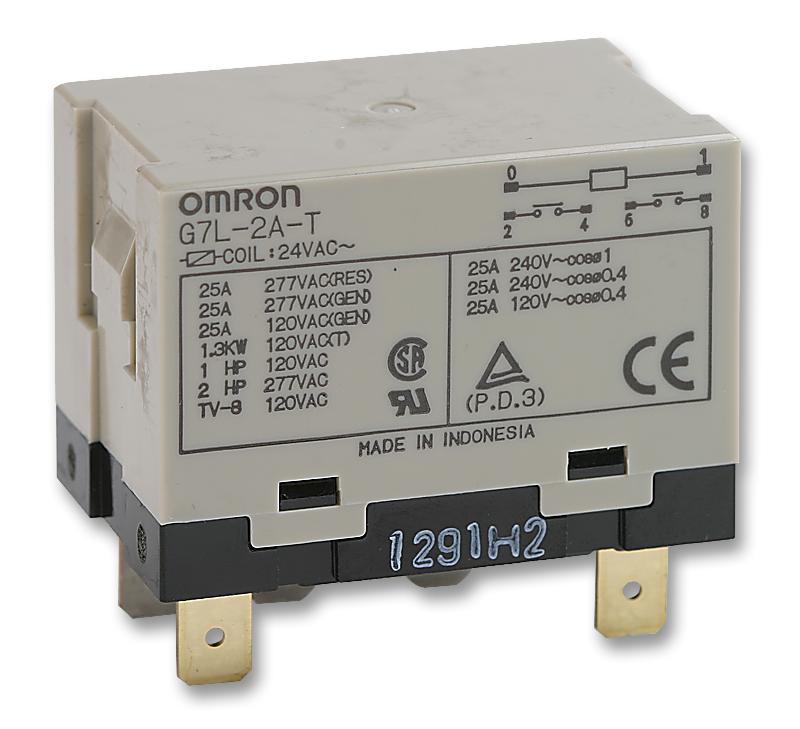

G7L-2A-T 24Vac Relay, DPST-NO, 277VAC, 25A Omron

OMRONSKU:G7L-2A-T 24VAC Bestelcode:9949674

Prijs:
Actie prijs€25,10

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (6 units)

Documenten en downloads

Omschrijving

OMRON - G7L-2A-T 24VAC - Power Relay, DPST-NO, 24 VAC, 25 A, G7L, Panel Mount, Non Latching

  • Contact Configuration: DPST-NO
  • Coil Voltage: 24VAC
  • Contact Current: 25A
  • Product Range: G7L Series
  • Relay Mounting: Panel
  • Coil Type: Non Latching
  • Contact Voltage VAC: 277VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: -
  • Contact Material: Silver Alloy
  • Coil Resistance: 303ohm
  • AC Coil Power: 2.5VA
  • Approval Bodies: CSA, IEC, UL, VDE
  • Approvals & Standards: CSA, IEC, UL
  • Coil Current: 71mA
  • Coil Operating Lower Percent Limit: 75%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Voltage VAC Nom: 24V
  • Contact Current AC Max: 25A
  • Contact Current Max: 25A
  • Contact Voltage AC Max: 220V
  • Contact Voltage AC Nom: 220V
  • External Depth: 47mm
  • External Height: 52.5mm
  • External Length / Height: 52.5mm
  • External Width: 33.5mm
  • Nom Operating Power: 2.5VA
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -25°C
  • Relay Type: Power
