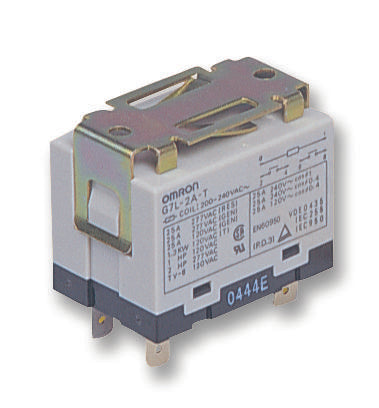

OMRON - G7L-2A-T DC100 - General Purpose Relay, G7L Series, Power, Non Latching, DPST-NO, 100 VDC, 25 A
- Contact Configuration: DPST-NO
- Coil Voltage: 100VDC
- Contact Current: 25A
- Product Range: G7L Series
- Relay Mounting: Panel
- Coil Type: Non Latching
- Contact Voltage VAC: 277VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: -
- Contact Material: Silver Alloy
- Coil Resistance: 5.26kohm
- Approvals & Standards: CSA, IEC, UL
- Coil Current: 19mA
- Coil Voltage VDC Nom: 100V
- Contact Current Max: 25A
- Contact Voltage AC Nom: 250V
- External Depth: 52.5mm
- External Height: 53mm
- External Width: 33.5mm
- Nom Operating Power: 1.9W
- Relay Type: Power
