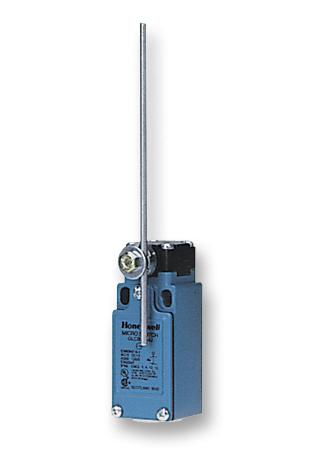

HONEYWELL - GLCB01A4J - Limit Switch, Side Rotary, 1NO / 1NC, 10 A, 300 V, 0.12 N, GLS
- Limit Switch Actuator: Side Rotary
- Contact Configuration: 1NO / 1NC
- Contact Current AC Max: 10A
- Contact Voltage AC Max: 300V
- Operating Force Max: 0.12N
- Product Range: GLS Series
- Contact Current DC Max: 10A
- Contact Voltage DC Max: 250V
- SVHC: No SVHC (07-Jul-2017)
- Actuator Type: Adjustable Rod Lever
- Approval Bodies: CSA, UL
- Case Material: zinc diecast
- Conduit Thread Size: PG13.5
- Contact Current Rating: 10A
- External Depth: 30mm
- External Length / Height: 55mm
- External Width: 30.5mm
- Fixing Centres LxW: 20-22
- Fixing Hole Diameter: 4.3mm
- IP / NEMA Rating: IP66
- No. of Mechanical Operations: 15000000
- Operating Force: 2.5N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Pre-travel: 3mm
- Standard: EN50047, EN60947-5-1, IEC947-5-1-3
- Switch Operation: Off-On
- Thermal Current Rating: 10A
