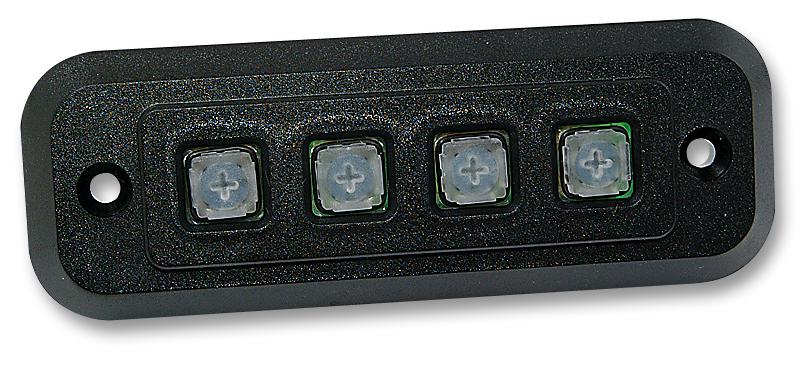

STORM INTERFACE - GS040201 - Keypad, STORM GRAPHIC, 1 x 4, Matrix, Polymer, 50 mA, 24 V
- Product Range: STORM GRAPHIC Series
- Keypad Array: 1 x 4
- Keypad Output: Matrix
- Housing Material: Polymer
- Contact Current Max: 50mA
- Contact Voltage DC Nom: 24V
- No. of Keys: 4
- Panel Cutout Width: 42.5mm
- Panel Cutout Height: 118.5mm
- SVHC: No SVHC (27-Jun-2018)
- Colour: Black
- Contact Current @ Contact Voltage DC Max: 50mA
- Contact Current DC Max: 50mA
- Contact Current Rating: 50mA
- Contact Voltage DC Max: 24V
- Height: 118.5mm
- IP / NEMA Rating: IP54
- Insulation Resistance: 50Mohm
- Material: Polymer
- Operating Temperature Max: 85°C
- Operating Temperature Min: -10°C
- Supply Voltage AC Max: 500V
