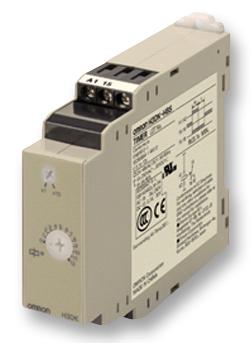

OMRON - H3DK-HCL AC100-120V - Analogue Timer, Off-Delay, 1 s, 120 s, 2 Ranges, Solid State
- Product Range: -
- Timer Functions: Off-Delay
- Time Min: 1s
- Time Max: 120s
- No. of Timing Ranges: 2Ranges
- Timer Output: Solid State
- Supply Voltage Max: 120VAC
- Current Rating Nom: 5A
- Connection / Termination: Screw Terminals
- Adjustment Type: Screwdriver Slot
- Contact Configuration: SPDT
- Contact Current AC Max: 5A
- Contact Current DC Max: 5A
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 30V
- Delay Time Range: 1s to 120s
- External Depth: 100.2mm
- External Length / Height: 79mm
- External Width: 22.5mm
- Operating Temperature Max: 55°C
- Operating Temperature Min: -20°C
- Relay Mounting: DIN Rail
- Supply Voltage Min: 100VAC
- Supply Voltage Range: 100V AC to 120V AC
- Timing Adjustment: Screwdriver Slot
- Type: Solid State
