Omschrijving
ARCOLECTRIC (BULGIN LIMITED) - H8351ABAAA - Pushbutton Switch, 8300, DPST, (On)-Off, Rectangular, Black
- Switch Operation: (On)-Off
- Contact Configuration: DPST
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Contact Current Max: 16A
- Switch Terminals: Quick Connect
- Product Range: 8300 Series
- SVHC: No SVHC (27-Jun-2018)
- Actuator / Cap Colour: Black
- Bezel Depth: 21mm
- Bezel Width: 15mm
- Colour: Black
- Contact Current @ Contact Voltage AC Max: 12A
- Contact Current AC Max: 16A
- Contact Voltage VAC: 250V
- External Depth: 25.5mm
- External Length / Height: 19mm
- External Width: 12.1mm
- Illumination Colour: Non-illuminated
- Insulation Resistance: 20Mohm
- No. of Mechanical Operations: 10000
- Operating Temperature Max: 105°C
- Operating Temperature Min: 0°C
- Panel Cutout (H x W): 12.9mm x 19.3mm
- Panel Cutout Width: 13mm
- Panel Cutout length: 19.2mm
- Pushbutton Actuator Style: Rectangular
- Pushbutton Switch Type: Standard
- Switch Mounting: Panel
- Tab Blade Thickness: 0.8mm
- Tab Width: 4.8mm
Verwachte verzendkosten
Bekijk ook eens

ARCOLECTRIC (BULGIN LIMITED)
H8350ABAAAT Switch, DPST, Lat Arcolectric (Bulgin Limited)
Actie prijs€5,05
Op voorraad, 1041 producten
ARCOLECTRIC (BULGIN LIMITED)
H8351ABAAD Pb Switch, DPST, 16A, 250VAC, Panel Arcolectric (Bulgin Limited)
Actie prijs€5,04
Nog maar 8 producten over
ARCOLECTRIC (BULGIN LIMITED)
H8670VBAAA Rocker Switch, DPDT, On-Off-On Arcolectric (Bulgin Limited)
Actie prijs€14,14
Op voorraad, 176 producten
ARCOLECTRIC (BULGIN LIMITED)
H8500XBAAA Rocker Switch, SPST, Black/Red, I/O Arcolectric (Bulgin Limited)
Actie prijs€4,32
Op voorraad, 1312 producten
ARCOLECTRIC (BULGIN LIMITED)
C1250APAAB Rocker Switch, DPST, I/O Arcolectric (Bulgin Limited)
Actie prijs€4,32
Op voorraad, 29626 producten
ARCOLECTRIC (BULGIN LIMITED)

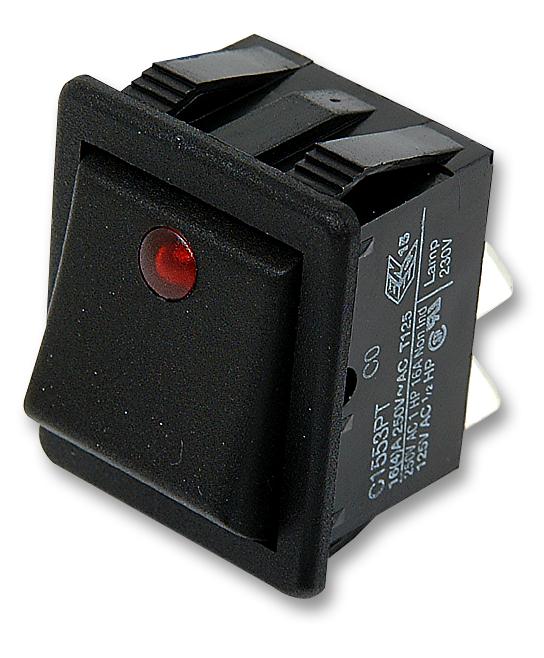

C1553PTNAB Rocker Switch, DPST, Illum Red Arcolectric (Bulgin Limited)
Actie prijs€11,14
Op voorraad, 490 producten
ARCOLECTRIC (BULGIN LIMITED)

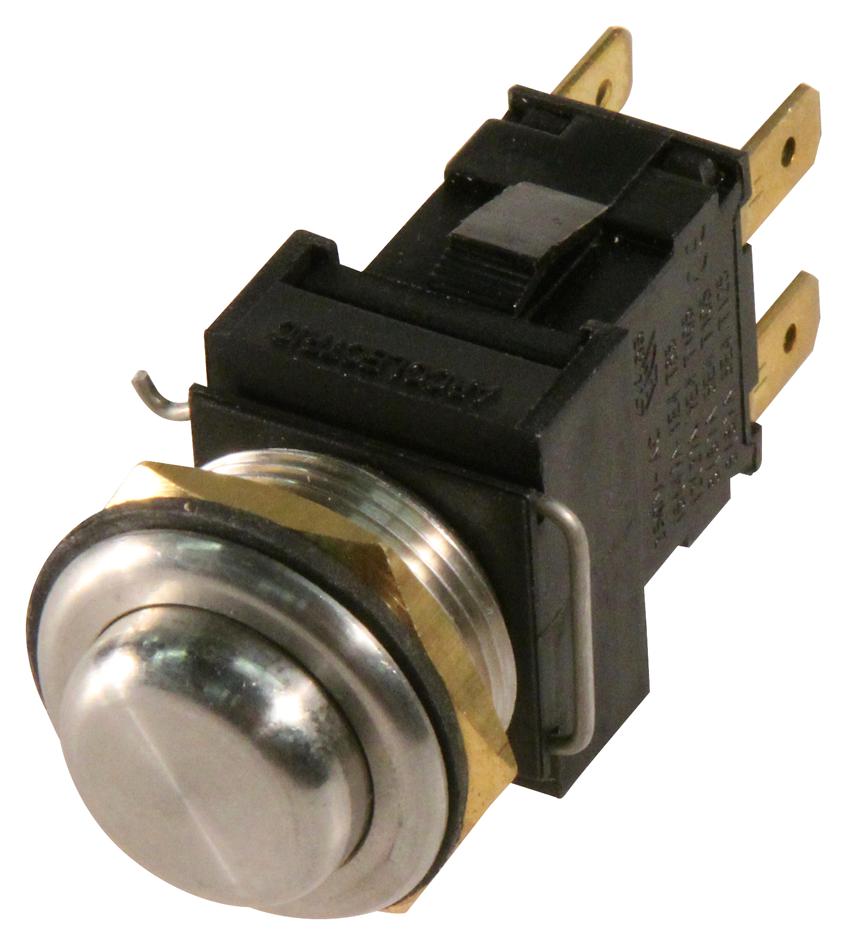

H8350RPAAA Switch, Vandal Resistant Arcolectric (Bulgin Limited)
