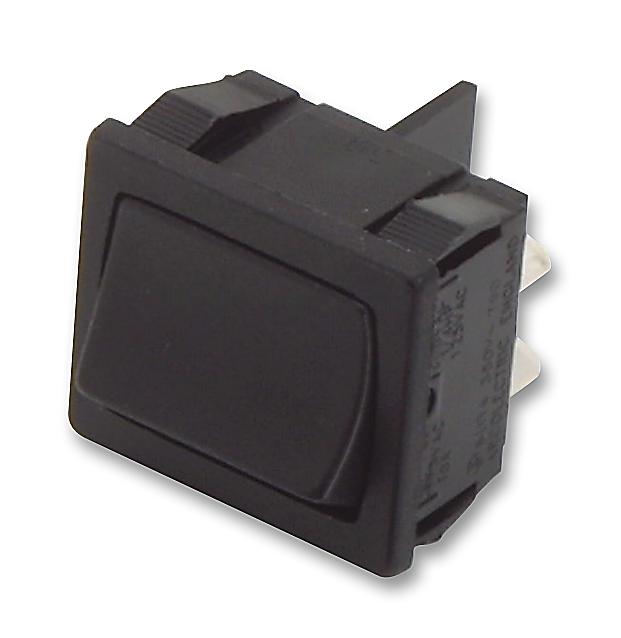

H8670VBAAA Rocker Switch, DPDT, On-Off-On Arcolectric (Bulgin Limited)

ARCOLECTRIC (BULGIN LIMITED)SKU:H8670VBAAA Bestelcode:7674058

Prijs:
Actie prijs€6,39

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (210 units)

Documenten en downloads

Omschrijving

ARCOLECTRIC (BULGIN LIMITED) - H8670VBAAA - Rocker Switch, Miniature, On-Off-On, DPDT, Non Illuminated, Panel Mount, Black, 8600

  • Illumination: Non Illuminated
  • Contact Configuration: DPDT
  • Switch Operation: On-Off-On
  • Actuator / Cap Colour: Black
  • Switch Mounting: Panel
  • Contact Current Max: 10A
  • Contact Voltage AC Nom: 277V
  • Contact Voltage DC Nom: 28V
  • Product Range: 8600 Series
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: CSA, ENEC, UL
  • Bezel Depth: 21mm
  • Bezel Height: 21mm
  • Bezel Width: 24mm
  • Colour: Black
  • Contact Current @ Contact Voltage AC Max: 10A
  • Contact Current @ Contact Voltage DC Max: 10A
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 10A
  • Contact Resistance: 100mohm
  • Contact Voltage AC Max: 250V
  • External Depth: 15mm
  • IP / NEMA Rating: IP40
  • Insulation Resistance: 20Mohm
  • No. of Electrical Operations: 10000
  • No. of Mechanical Operations: 50000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: 0°C
  • Panel Cutout Depth: 1.99mm
  • Panel Cutout Size: 24 x 19.8 mm
  • Panel Cutout Width: 24mm
  • Panel Cutout length: 21mm
  • Tab Blade Thickness: 0.8mm
  • Tab Width: 4.8mm
