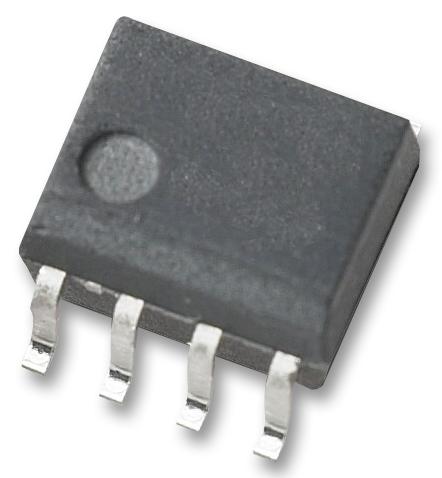

BROADCOM - HCPL-0302-000E - Optocoupler, Gate Drive Output, 1 Channel, SOIC, 8 Pins, 3.75 kV
- No. of Channels: 1 Channel
- Optocoupler Case Style: SOIC
- No. of Pins: 8Pins
- Isolation Voltage: 3.75kV
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Approval Bodies: CSA
- Approval Category: IEC/EN/DIN EN 60747-5-2
- CMR: 10kV/µs
- External Depth: 3.937mm
- External Length / Height: 3.175mm
- External Width: 5.08mm
- Fall Time tf: 50ns
- Input Current: 12mA
- Lead Spacing: 1.27mm
- No. of Channels: 1Channels
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +100°C
- Optocoupler Output Type: Gate Drive
- Optocoupler Type: Gate Drive Output
- Output Current: 0.2A
- Output Voltage: 30V
- Peak Output Current: 0.4A
- Propagation Time H-L: 0.7µs
- Propagation Time L-H: 0.7µs
- Rise Time: 50ns
- Row Pitch: 3.937mm
- Supply Voltage Max: 30V
- Supply Voltage Min: 10V
- Voltage Vcc Max: 20V
- Voltage Vcc Min: 10V
- Voltage Vcm: 1000V
