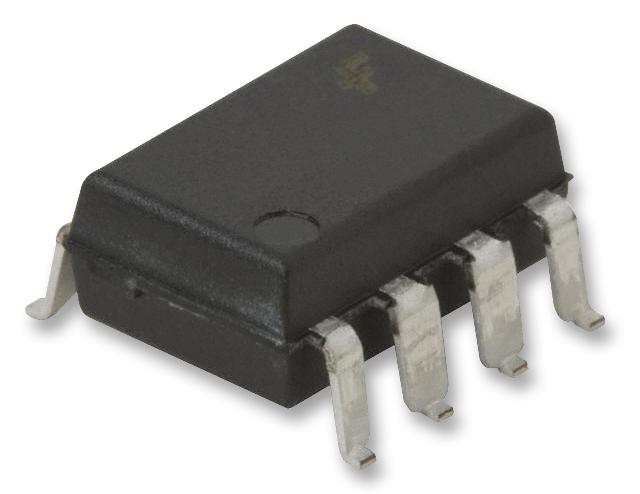

BROADCOM - HCPL-261N-300E - Optocoupler, Digital Output, 1 Channel, 3.75 kV, 10 Mbaud, Surface Mount DIP, 8 Pins
- No. of Channels: 1 Channel
- Isolation Voltage: 3.75kV
- Data Rate: 10Mbaud
- Optocoupler Case Style: Surface Mount DIP
- No. of Pins: 8Pins
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Approval Bodies: CSA, IEC
- Baud Rate: 10000000
- CMR: 1000V/µs
- Fall Time tf: 53ns
- Input Current: 10mA
- No. of Channels: 1Channels
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Optocoupler Output Type: Logic Gate
- Optocoupler Type: Logic Gate Output
- Output Enable: Yes
- Output Voltage: 7V
- Output Voltage Max: 5.5V
- Rise Time: 52ns
- Voltage Vcm: 1000V
