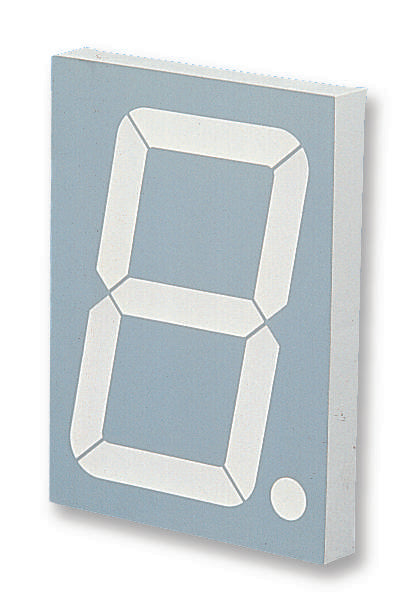

BROADCOM - HDSP-815E - 7 Segment LED Display, Red, 20 mA, 2.1 V, 4.8 mcd, 1, 20 mm
- LED Colour: Red
- Forward Current If: 20mA
- Forward Voltage: 2.1V
- Luminous Intensity: 4.8mcd
- No. of Digits / Alpha: 1
- Character Size: 20mm
- Common Connection: Common Anode
- Product Range: -
- SVHC: Hexahydromethylphthalic anhydride [1], Hexahydro-4-methylphthalic anhydride [2], Hexahydro-1-methylphthalic anhydride[3] (27-Jun-2018)
- Background Colour: Grey
- Character Type: 8.
- Current If Luminous Intensity: 20mA
- External Depth: 8.38mm
- External Length / Height: 27.69mm
- External Width: 19.96mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.1V
- Luminous Intensity per Segment @ If Min: 2.3mcd
- Luminous Intensity per Segment @ If Typ: 4.8mcd
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Operating Temperature Range: -25°C to +85°C
- PIV Max: 3V
- Peak Forward Current: 20mA
- Voltage Vf Typ: 2.1V
