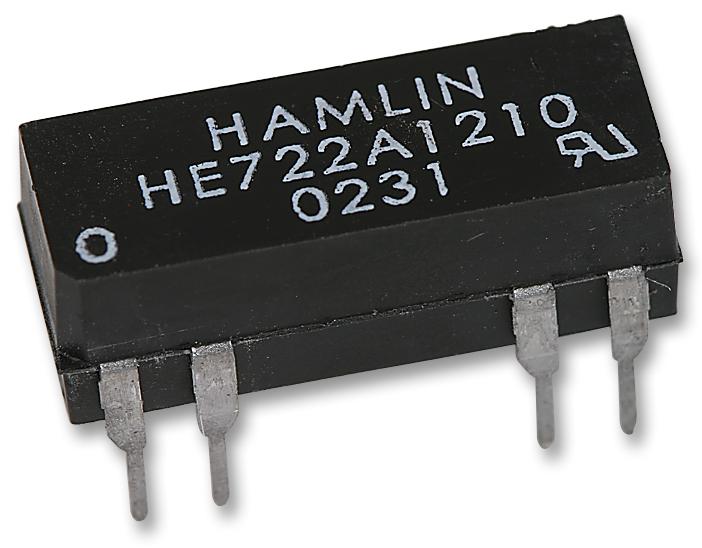

HE722A1210 Relay, Reed, DPST-NO, 200V, 0.5A, THT Hamlin

HAMLINSKU:HE722A1210 Bestelcode:9561820

Prijs:
Actie prijs€5,88

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (168 units)

Documenten en downloads

Omschrijving

LITTELFUSE - HE722A1210 - Reed Relay, DPST-NO, 12 VDC, HE700, Through Hole, 500 ohm, 500 mA

  • Contact Configuration: DPST-NO
  • Coil Voltage: 12VDC
  • Product Range: HE700 Series
  • Relay Mounting: Through Hole
  • Coil Resistance: 500ohm
  • Switching Current Max: 500mA
  • Switching Voltage Max: 200V
  • Coil Voltage Max: 20V
  • Coil Voltage Min: 8V
  • Coil Voltage VDC Nom: 12V
  • Contact Current DC Max: 500mA
  • Contact Resistance: 0.2ohm
  • Contact Voltage DC Max: 200V
  • Dropout Voltage Vdo: 1V
  • External Depth: 20.14mm
  • External Height: 5.82mm
  • External Length / Height: 19.5mm
  • External Width: 7.24mm
  • Hold Off Voltage Min: 250V
  • Insulation Resistance: 10000Mohm
  • Lead Spacing: 7.62mm
  • Must Actuate Voltage: 8V
  • Must Release Voltage: 1V
  • No. of Pins: 8Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 0.5ms
  • Pull-in Voltage: 8 V
  • Release Time: 0.5ms
  • Row Pitch: 2.54mm
  • Switch Current Max: 500mA
  • Switch Power Max: 10W
