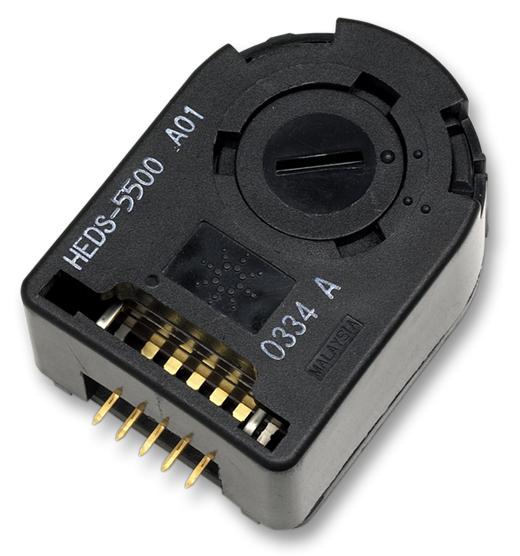

BROADCOM - HEDS-5540#A01 - Rotary Encoder, Optical, Incremental, 500 PPR, 0 Detents, Vertical, Without Push Switch
- Supply Voltage Min: -
- Supply Voltage Max: -
- No. of Channels: 3 Channel
- Rotational Speed Max: -
- Encoder Resolution: 500
- Product Range: HEDS-5540 Series
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 18.3mm
- External Length / Height: 41.1mm
- External Width: 30mm
- No. of Channels: 3Channels
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +100°C
- Rotational Life Cycles: 500
- Rotational Speed: 30000rpm
- Shaft Diameter: 2mm
- Supply Voltage: 5V
- Supply Voltage Range: 4.5V to 5.5V
- Type: Optical Incremental Encoder
