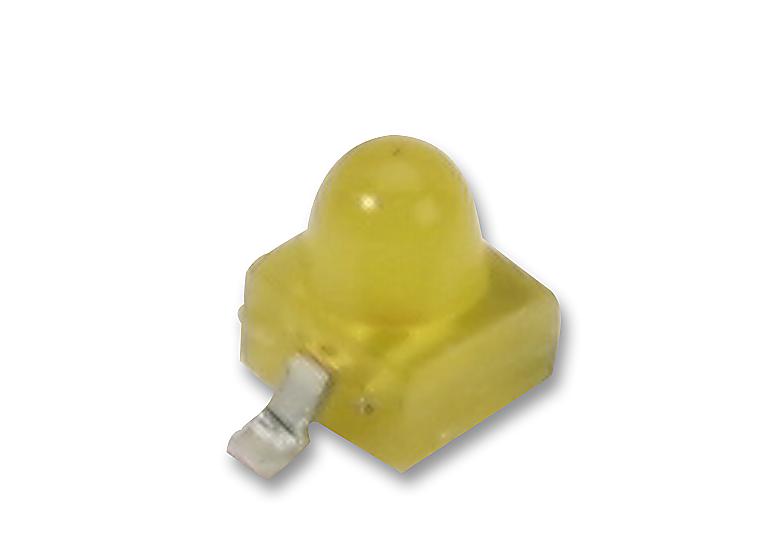

HLMP-6400-F0011 LED, SMD, SUBMIN, Yellow BROADCOM

BROADCOMSKU:HLMP-6400-F0011 Bestelcode:1003358

Prijs:
Actie prijs€3,29

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1142 units)

Documenten en downloads

Omschrijving

BROADCOM - HLMP-6400-F0011 - LED, Yellow, SMD, 1.91mm, 20 mA, 2 V, 585 nm

  • LED Colour: Yellow
  • LED Mounting: SMD
  • LED Case Size: 1.91mm
  • Forward Current If: 20mA
  • Forward Voltage: 2V
  • Wavelength Typ: 585nm
  • Luminous Intensity: 9mcd
  • Viewing Angle: 90°
  • Lens Shape: Round
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 2A - 4 weeks
  • SVHC: No SVHC (27-Jun-2018)
  • Bulb Size: 1.91mm
  • Current If Luminous Intensity: 10mA
  • Dominant Wavelength: 585nm
  • External Depth: 2.2mm
  • External Length / Height: 2.9mm
  • External Width: 2.2mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 5V
  • LED Type: Standard
  • Lead Cross-section Depth: 0.2mm
  • Lead Cross-section Width: 0.2mm
  • Lead Length: 0.51mm
  • Luminous Intensity Typ: 3mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +100°C
  • PIV Max: 5V
  • Peak Forward Current: 20mA
  • Peak Wavelength: 583nm
  • Reel Quantity: 1500
  • Tape Width: 12mm
