HLMP-EL1A-Z1KDD LED, 5mm, ALINGAP, Amber, 15DEG BROADCOM

BROADCOMSKU:HLMP-EL1A-Z1KDD Bestelcode:1706679

Prijs:
Actie prijs€2,18

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (13686 units)

Documenten en downloads

Omschrijving

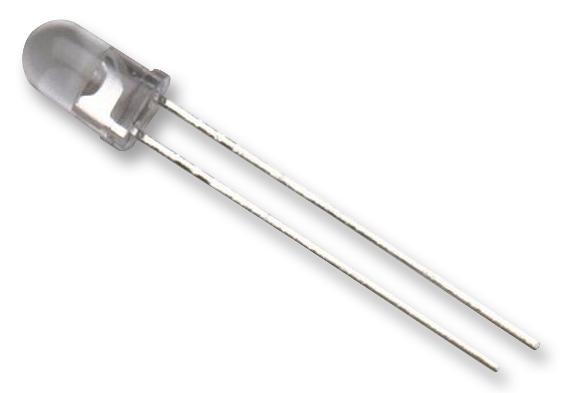

BROADCOM - HLMP-EL1A-Z1KDD - LED, Amber, Through Hole, T-1 3/4 (5mm), 20 mA, 2.1 V, 594.5 nm

  • LED Colour: Amber
  • LED Mounting: Through Hole
  • LED Case Size: T-1 3/4 (5mm)
  • Forward Current If: 20mA
  • Forward Voltage: 2.1V
  • Wavelength Typ: 594.5nm
  • Luminous Intensity: 21cd
  • Viewing Angle: 15°
  • Lens Shape: Round
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Bulb Size: T-1 3/4 (5mm)
  • Dominant Wavelength: 590nm
  • Dominant Wavelength Typ: 590nm
  • Forward Voltage VF Max: 2.4V
  • LED / Lamp Size: 5mm / T-1 3/4
  • LED Type: Standard
  • Luminous Intensity Max: 21000mcd
  • Luminous Intensity Min: 12000mcd
  • Luminous Intensity Typ: 21000mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +100°C
