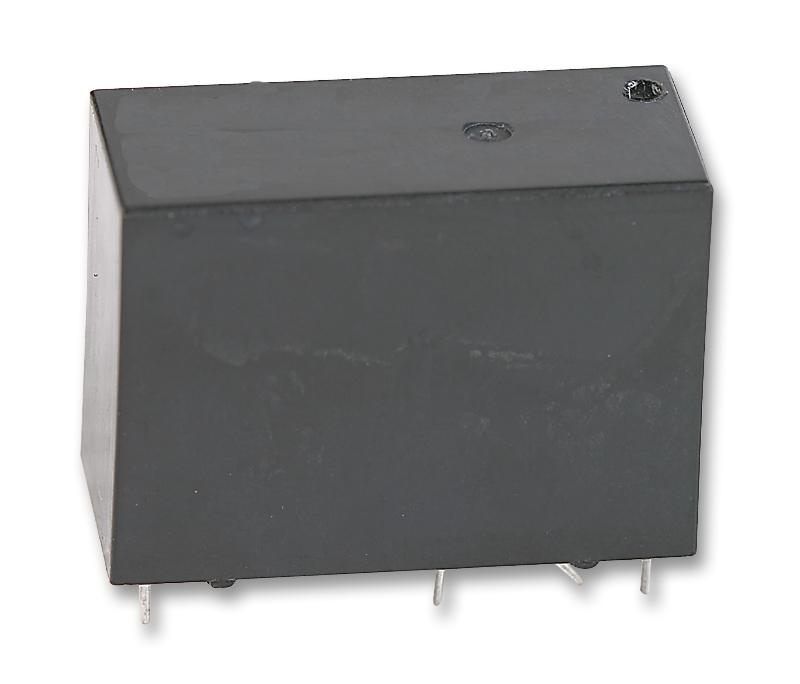

HRM1-S DC12V Relay, DPDT, 12VDC, 5A multicomp Pro

MULTICOMP PROSKU:HRM1-S DC12V Bestelcode:9479953

Prijs:
Actie prijs€4,97

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (476 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - HRM1-S DC12V-C - General Purpose Relay, HRM1 Series, Power, DPDT, 12 VDC, 5 A

  • Contact Configuration: DPDT
  • Coil Voltage: 12VDC
  • Contact Current: 5A
  • Product Range: HRM1 Series
  • Relay Mounting: Through Hole
  • Coil Type: -
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 24VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 200ohm
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Current Max: 5A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 24V
  • DC Coil Power: 720mW
  • External Depth: 12.6mm
  • External Height: 20.8mm
  • External Length / Height: 20.8mm
  • External Width: 29mm
  • Nom Operating Power: 720mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -30°C
  • Operating Time: 15ms
  • Relay Type: Power
  • Release Time: 8ms
