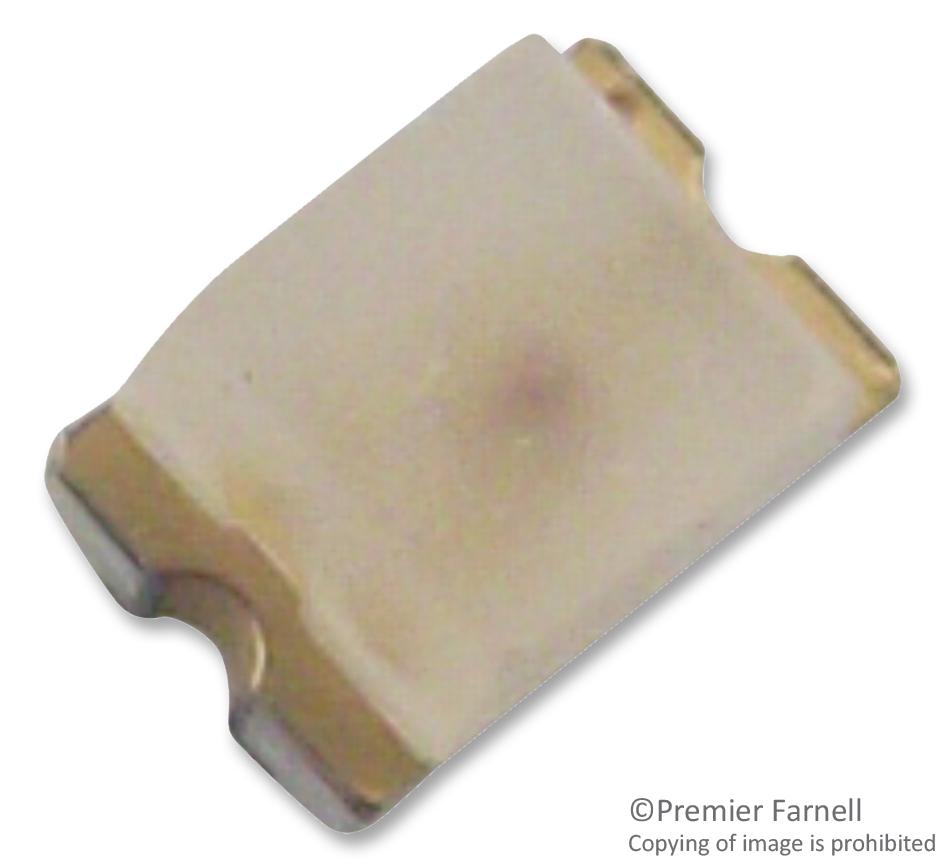

HSMG-C150. LED, SMD, Green, 15mcd, 572nm BROADCOM

BROADCOMSKU:HSMG-C150 Bestelcode:8554595

Prijs:
Actie prijs€1,09

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (108084 units)

Documenten en downloads

Omschrijving

BROADCOM - HSMG-C150 - LED, Green, SMD, 1.6mm x 3.2mm, 20 mA, 2.2 V, 572 nm

  • LED Colour: Green
  • LED Mounting: SMD
  • LED Case Size: 1.6mm x 3.2mm
  • Forward Current If: 20mA
  • Forward Voltage: 2.2V
  • Wavelength Typ: 572nm
  • Luminous Intensity: 15mcd
  • Viewing Angle: 170°
  • Lens Shape: Rectangular
  • Product Range: SMD Green LED
  • Automotive Qualification Standard: -
  • MSL: MSL 2A - 4 weeks
  • SVHC: No SVHC (27-Jun-2018)
  • Bulb Size: 1.6mm x 3.2mm
  • Dominant Wavelength: 572nm
  • External Depth: 1.1mm
  • External Length / Height: 3.2mm
  • External Width: 1.6mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.6V
  • LED Type: Standard
  • Light Output Orientation: Top Emitting
  • Luminous Intensity @ If Min: 4.5mcd
  • Luminous Intensity Typ: 15mcd
  • Material: GaP
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Operating Temperature Range: -30°C to +85°C
  • Opto Mounting Orientation: Top
  • PIV Max: 5V
  • Peak Wavelength: 570nm
  • Reverse Protection Voltage: 5V
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Min: 2.2V
  • Voltage Vf Typ: 2.2V
